ZHCS1000 - Diodes

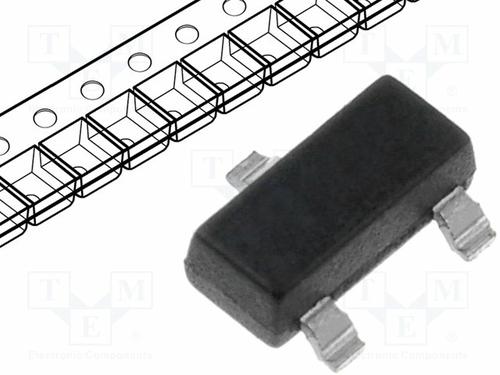

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ZHCS1000
Manufacturer

Diodes
ChipWorker Part#

CW30366600
Package

SOT-23
Description

Diode: Schottky rectifying; SMD; 60V; 1A; 12ns; 0.5W(1/2W); SOT23
Documentation

Datasheet

ZHCS1000 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ZHCS1000 Specifications

Attribute	Attribute Value

Part Number	ZHCS1000
Manufacturer	Diodes
ChipWorker Part#	CW30366600
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Capacitance	25 pF
Power Rating	500 mW
Load Current	1 A
Number of Positions	3 Position
Forward Voltage	425 mV
Forward Current	1 A
Max Forward Surge Current (Ifsm)	12 A
Maximum Forward Voltage (Max)	425 mV
Operating Temperature (Max)	125 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The ZHCS1000 from Diode Inc is surface mount schottky barrier diode in SOT23 package. Applicable for DC-DC Converters, mobile telecoms, PCMIA & SCSI.
Automotive grade AEC-Q101 qualified
Maximum repetitive reverse voltage Vrrm of 40V
Non repetitive forward surge current IFSM of 12A at t
Forward current If(AV) of 1A
Maximum forward voltage VF of 425mV at IF 1A
Operating junction temperature of 125°C
