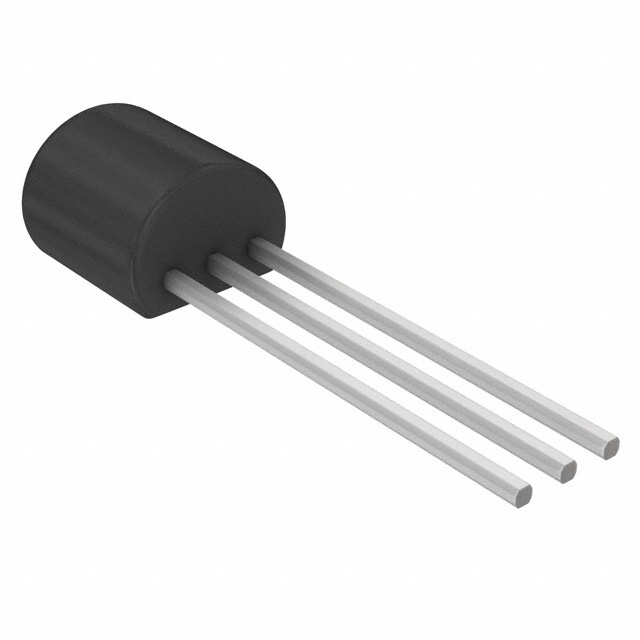

ZTX690B ,BJT Transistor, BJT - Diodes

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

65 points

Part No

ZTX690B
Manufacturer

Diodes
ChipWorker Part#

CW37823533
Category

BJT Transistor, BJT
Package

E-Line-3
Description

ZTX690B Series NPN 2A 45V Silicon Planar Medium Power Transistor - TO-92-3
Documentation

Datasheet
Ships from

Moscow
Наличие

3745 pcs In Stock
Estimated Price

$ 0.18

Buy ZTX690B

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ZTX690B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ZTX690B Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ZTX690B
Manufacturer	Diodes
ChipWorker Part#	CW37823533
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	E-Line-3
Voltage Rating (DC)	45.0 V
Current Rating	2.00 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	2A
hFE Min	400 @1A, 2V
Input Power (Max)	1 W
DC Current Gain (hFE)	500
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	expand all
Material	Silicon
Operating Temperature	-55℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

ZTX690B Series NPN 2 A 45 V Silicon Planar Medium Power Transistor - TO-92-3
