1054431101 ,Connector - Molex

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

119 points

Part No

1054431101
Manufacturer

Molex
ChipWorker Part#

CW8474540
Category

Connector
Description

Conn Micro USB Type B RCP 5POS 0.65mm Solder RA SMD 5 Terminal 1Port
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.89

Buy 1054431101

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

1054431101 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

1054431101 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	1054431101
Manufacturer	Molex
ChipWorker Part#	CW8474540
Category	Connector
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Contacts	5 Contact
Gender	Female
Contact Plating	Gold
Current Rating	1.8 A
Number of Rows	01 Row
Orientation	Right Angle
Number of Mating Cycles	10000 Cycle
Current Rating (Max)	1.8A/触头
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	30 V
Voltage Rating	30 VAC
	expand all
Contact Material	Copper Alloy
Operating Temperature	-35℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

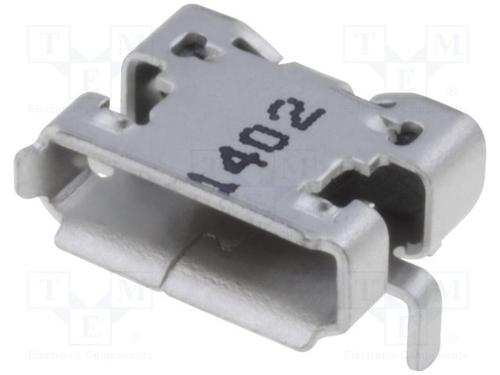

MCR-AB1-S-RA-SMT-CS1-T/R

Product Description

Make a secure connection for your applications" sound with the micro USB type b 1054431101 audio and video connector from Molex. This RCP connector"s 5 contacts that are made out of copper alloy and plated with gold. It has a receptacle type gender. Its pitch is 0.65 mm. It has a maximum voltage rating of 30 V. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 1.8 A/contact. 1054431101 is housed in liquid crystal polymer. This part has a minimum operating temperature of -30 °C and a maximum of 85 °C. This product is 9.3 mm long and 7 mm. Its 5 terminals use the solder termination method.
