15KPA75A - Littelfuse

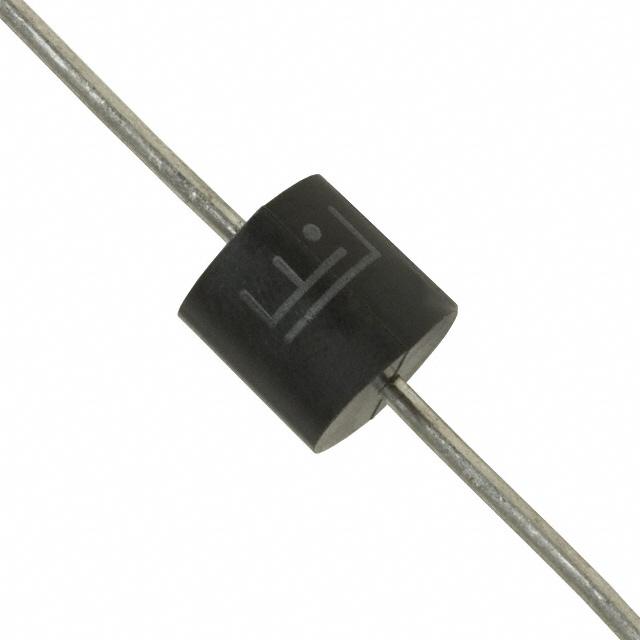

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

15KPA75A
Manufacturer

Littelfuse
ChipWorker Part#

CW17305791
Category

TVS Diode
Package

P-600
Description

15KPA Series 122V 15kW Through Hole Uni-Directional TVS Diode - P-600
Documentation

Datasheet

15KPA75A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

15KPA75A Specifications

Attribute	Attribute Value

Part Number	15KPA75A
Manufacturer	Littelfuse
ChipWorker Part#	CW17305791
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	P-600
Operating Voltage	75 V
Breakdown Voltage	83.3 V
Number of Circuits	1 Circuit
Power Dissipation	15000 W
Clamping Voltage	122 V
Test Current	5 mA
Peak Pulse Power	15000 W
Min Breakdown Voltage	83.8 V
Reverse Breakdown Voltage	83.8 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	expand all
Size-Length	9.1 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Take the extra step in your circuitry by implementing surge protection with this 15KPA75A TVS diode from Littelfuse. Its peak pulse power dissipation is 15000 W. This device"s maximum clamping voltage is 122 V and minimum breakdown voltage is 83.8 V. Its maximum leakage current is 2 μA. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C.
