1N4148W-7-F ,Small Signal Diode - Diodes

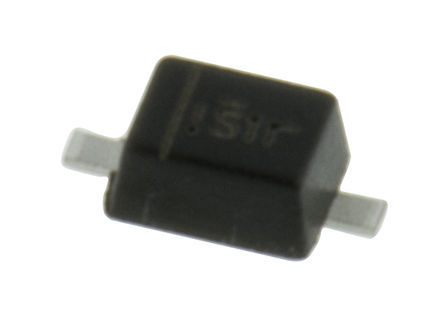

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

252 points

Part No

1N4148W-7-F
Manufacturer

Diodes
ChipWorker Part#

CW44644
Category

Small Signal Diode
Package

SOD-123
Description

Small Signal Diode, Single, 100V, 300mA, 1.25V, 4ns, 2A
Documentation

Datasheet
Ships from

Moscow
Наличие

439468 pcs In Stock
Estimated Price

$ 0.01

Buy 1N4148W-7-F

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

1N4148W-7-F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

1N4148W-7-F Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	1N4148W-7-F
Manufacturer	Diodes
ChipWorker Part#	CW44644
Category	Small Signal Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	75.0 V
Current Rating	150 mA
Capacitance	2 pF
Power Rating	400 mW
Output Current	≤150 mA
Number of Positions	2 Position
Forward Voltage	1.25 V
Polarity	Standard
Power Dissipation	400 mW
Reverse recovery time	4 ns
Forward Current	300 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	300 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	400 mW
	expand all
Size-Length	2.85 mm
Size-Width	1.7 mm
Size-Height	1.25 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The 1N4148W-7-F is a surface mount fast Switching Diode with moulded plastic case. Suitable for general purpose switching applications.
