1N459A ,Small Signal Diode - Fairchild

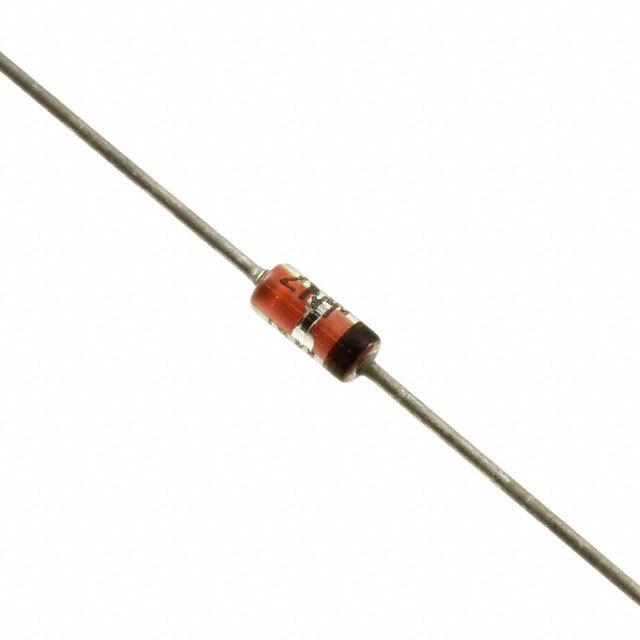

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

74 points

Part No

1N459A
Manufacturer

Fairchild
ChipWorker Part#

CW63445814
Category

Small Signal Diode
Package

DO-35
Description

1N459A Series 0.5W(1/2W) 200V Max Reverse Voltage Small Signal Diode - DO-35
Documentation

Datasheet
Ships from

Moscow
Наличие

151988 pcs In Stock
Estimated Price

$ 0.02

Buy 1N459A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

1N459A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

1N459A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	1N459A
Manufacturer	Fairchild
ChipWorker Part#	CW63445814
Category	Small Signal Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	200 V
Current Rating	500 mA
Capacitance	6.00 pF
Output Current	≤500 mA
Forward Voltage	1V @100mA
Polarity	Standard
Power Dissipation	500 mW
Thermal Resistance	300℃/W (RθJA)
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	0.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	500 mW
	expand all
Size-Length	4.56 mm
Size-Width	1.91 mm
Size-Height	1.91 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
