2938581 ,AC to DC Converter, AC/DC Converter - Phoenix

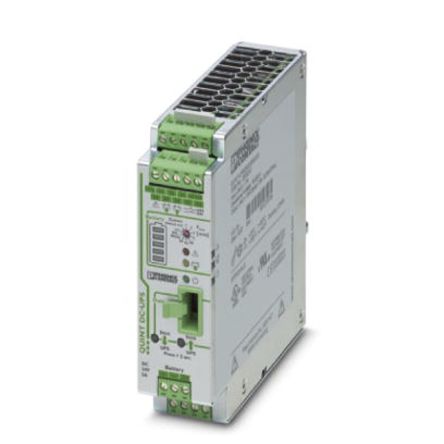

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

57 points

Part No

2938581
Manufacturer

Phoenix
ChipWorker Part#

CW38335037
Category

AC to DC Converter, AC/DC Converter
Package

100
Description

Power Supply; AC-DC; 24V; 5A; 85-264V In; Enclosed; DIN Rail Mount; 120W; QUINT Series
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 472.29

Buy 2938581

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2938581 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2938581 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2938581
Manufacturer	Phoenix
ChipWorker Part#	CW38335037
Category	AC to DC Converter, AC/DC Converter
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Pins	10 Pin
Case/Package	100
Frequency	45Hz ~ 65Hz
Current Rating	5 A
Power Rating	120 W
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	5 A
Output Power	120 W
Isolation Voltage	4 kV
Input Voltage (Max)	264 VAC
Input Voltage (Min)	85 VAC
Input Voltage (DC Max)	350 V
Input Voltage (DC Min)	90 V
Input Voltage (AC Max)	264 V
Input Voltage (AC Min)	85 V
Output Voltage (Max)	28.5 VDC
Output Voltage (Min)	22.5 VDC
Output Current (Max)	5 A
Input Power (Max)	120 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	100VAC ~ 240VAC
	expand all
Size-Length	4.9 in
Size-Width	2.2 in
Size-Height	5.1 in
Weight	830 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8504407007
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

**QUINT POWER SUPPLY allows global use due to a wide range input. ** The reliability of a power supply determines the availability of individual components in a system and whether complex systems can function safely. The globalization of markets has increased the demand placed on a power supply. This has resulted in a need for a wide range input and a high level of availability. These requirements are met by the QUINT POWER SUPPLY. Based on the wide range input and an international approval package (including UL 60950 for IT equipment and UL 508 for industrial control equipment) this power supply is the most versatile and qualified for worldwide use. Your entire system can be tested at any production location in the world and delivered to any location in the world without faulty switching of the input voltage. This will help reduce storage costs and logistical efforts. The QUINT POWER product range offers universal DC power supplies from 60-960 W. They are designed as primary switched-mode regulators and operate with a high level of efficiency so the loss is kept to a minimum. High levels of operating safety are required in complex global networks. This power supply contains large capacitors that guarantee a main failure bridging time of more than 20 ms at full load. QUINT POWER also operates in applications where static voltage dips, transient power supply failures, or phase failures are common. The QUINT POWER SUPPLY provides preventive function monitoring diagnoses, an impermissible operating state, and minimizes downtimes in your system. An Active transistor output and an electrically isolated relay contact are provided for monitoring of this state. This signal not only provides information on the device function, but also indicates a system overload at an early stage. QUINT-PS-100-240AC/24DC/5 is a primary switch-mode power supply unit for universal use, 1 phase, Din-rail mountable. (24 V DC / 5 A) **Features **
* Preventative Function Monitoring through professional signaling
* Idle proof and short circuit proof
* High level of operational safety
* Five-Year USA Warranty
