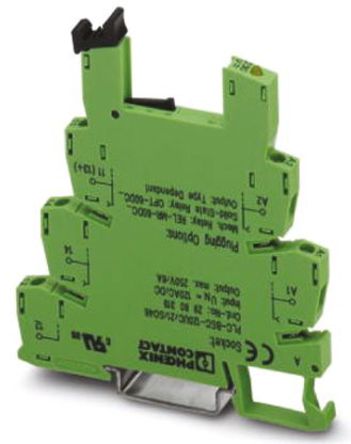

2961118 ,Power Relay - Phoenix

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

55 points

Part No

2961118
Manufacturer

Phoenix
ChipWorker Part#

CW40296100
Category

Power Relay
Package

SIP
Description

Electromechanical Relay SPDT 6A 60VDC 20.5KΩ Through Hole
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 7.94

Buy 2961118

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2961118 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2961118 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2961118
Manufacturer	Phoenix
ChipWorker Part#	CW40296100
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	SIP
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	6 A
Contacts Type	SPDT
Power Consumption	140 W
Contact Current Rating	6 A
Coil Voltage	60 VDC
Coil Current	3 mA
Coil Resistance	20.5 kΩ
Current Rating (Max)	6 A
Coil Voltage (DC)	60 V
Input Power (Max)	1.5 KVA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
	expand all
Size-Length	28 mm
Size-Width	15 mm
Size-Height	15 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536410050
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Pluggable Miniature Relay, 60 VDC (Nom.) Coil Voltage, 1PDT Contact Form
* Contact material AgSnO
Relay contact form 1 PDT, input voltage 60 VDC.
