2987943 - Phoenix

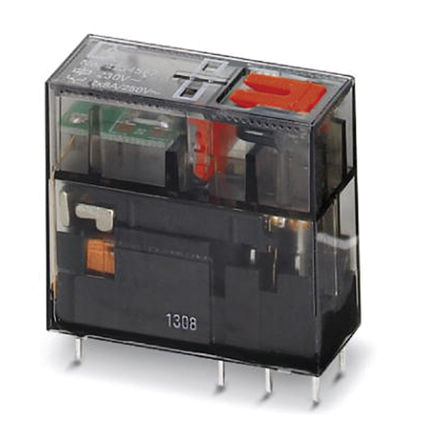

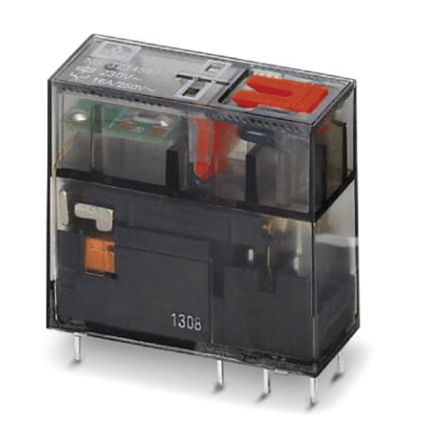

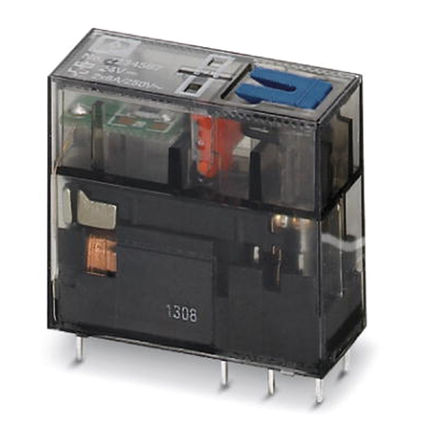

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2987943
Manufacturer

Phoenix
ChipWorker Part#

CW66200114
Category

Power Relay
Package

DIP
Description

Electromechanical Relay 24VDC 1.33KΩ 8A DPDT(12.7x25x29)mm Plug-In Miniature Relay
Documentation

Datasheet

2987943 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2987943 Specifications

Attribute	Attribute Value

Part Number	2987943
Manufacturer	Phoenix
ChipWorker Part#	CW66200114
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Contact Current Rating	8 A
Coil Voltage	24 VDC
Coil Current	18 mA
Coil Resistance	1.33 KΩ
Coil Voltage (DC)	24 V
Input Power (Max)	2 KVA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	25 mm
Size-Width	12.7 mm
Size-Height	29 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

**PLC-RSC Series**
PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
