VNI4140K ,FET Driver - ST Microelectronics

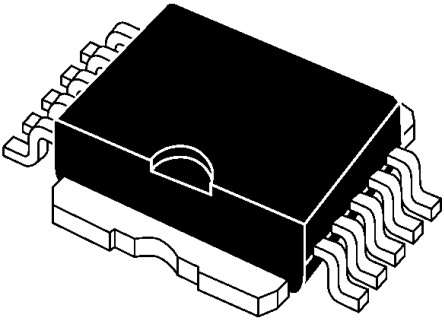

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

152 points

Part No

VNI4140K
Manufacturer

ST Microelectronics
ChipWorker Part#

CW8345778
Category

FET Driver
Package

PowerSSO-24
Description

Power Switch Hi Side 4Out 0.7A 0.08Ω 24Pin PowerSSO EP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

1189 pcs In Stock
Estimated Price

$ 4.83

Buy VNI4140K

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

VNI4140K Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

VNI4140K Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	VNI4140K
Manufacturer	ST Microelectronics
ChipWorker Part#	CW8345778
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	PowerSSO-24
Supply Voltage (DC)	10.5V (min)
Number of Outputs	4 Output
Output Current	700 mA
Supply Current	2.4 mA
Number of Positions	24 Position
Input Voltage (Max)	41 V
Output Current (Max)	700 mA
Output Current (Min)	0.7 A
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	36 V
Supply Voltage (Min)	10.5 V
Input Voltage	10.5V ~ 36V
	expand all
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.4 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The VNI4140K is a quad high-side smart power Solid State Relay made using STMicroelectronics VIPower technology and intended to drive four independent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shutdown protects the chip from over-temperature and short-circuits. In over-load conditions, channel turns OFF and back ON automatically so to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, over-loaded channel is turned OFF and restart only when case temperature has decreased down to TCR. In case of more than one channel in overload, restart of the over-loaded channels is not simultaneous and in order to avoid high peak current from the supply. Non-over-loaded channels continue operating normally. The open drain diagnostics outputs indicate over-temperature conditions.
Shorted load protections
Junction over-temperature protection
Protection against loss of ground
Current limitation
Under-voltage shutdown
Open-drain diagnostic outputs
3.3V CMOS/TTL compatible inputs
Fast demagnetization of inductive loads
ESD sensitive device, take proper precaution while handling the device.
