2N6073BG - ON Semiconductor

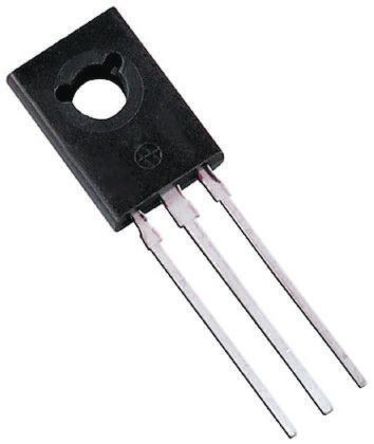

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N6073BG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW30481339
Category

TRIAC Diode, TRIAC
Package

TO-126-3
Description

ON Semiconductor, 2N6073BG, TRIAC, 400V 4A, Gate Trigger 2.5V 20mA, 3Pin TO-225
Documentation

Datasheet

2N6073BG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2N6073BG Specifications

Attribute	Attribute Value

Part Number	2N6073BG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW30481339
Category	TRIAC Diode, TRIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	400 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Holding Current	30 mA
Holding Current (Max)	15 mA
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Operating Temperature	-40℃ ~ 110℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

TRIACS 4.0 A RMS, 200 − 600 V
Silicon Bidirectional Thyristors
Designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls and power supplies; or wherever full-wave silicon gate controlled solid-state devices are needed. Triac type thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.
Features
•Sensitive Gate Triggering Uniquely Compatible for Direct Coupling to TTL, HTL, CMOS and Operational Amplifier Integrated Circuit Logic Functions
•Gate Triggering: 4 Mode − 2N6071A, B; 2N6073A, B; 2N6075A, B
•Blocking Voltages to 600 V
•All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity and Stability
•Small, Rugged, Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability
•Device Marking: Device Type, e.g., 2N6071A, Date Code
