3057 BK005 - Alpha Wire

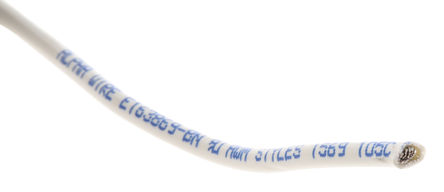

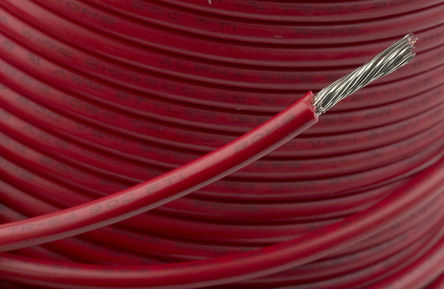

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

3057 BK005
Manufacturer

Alpha Wire
ChipWorker Part#

CW4621840
Category

Single Conductor
Description

Wire, Hook-Up; 16AWG; 26/30; 0.016in.; 0.095in.; -40℃; 300V; Black
Documentation

Datasheet

3057 BK005 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

3057 BK005 Specifications

Attribute	Attribute Value

Part Number	3057 BK005
Manufacturer	Alpha Wire
ChipWorker Part#	CW4621840
Category	Single Conductor
Documentation	Datasheet
Wire Gauge	16 AWG
Voltage Rating (DC)	300 V
Flammability Rating	UL VW-1
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	300 VAC
Voltage Rating	300 V
	expand all
Size-Length	30.5 m
Housing Color	Black
Color	Black
Insulation Material	PVC
Operating Temperature	-40℃ ~ 105℃
Conductor Material	Tinned Copper
Jacket Material	PVC
Product Lifecycle Status	Active
Packaging	Coil
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Product Description

0.016 in. Insulation Thickness, 300V, Color-Coded PVC Insulated Hook-Up Wires
* Stranded tinned copper conductor
0.016 in. color-coded PVC insulation
