5KP36CA - Littelfuse

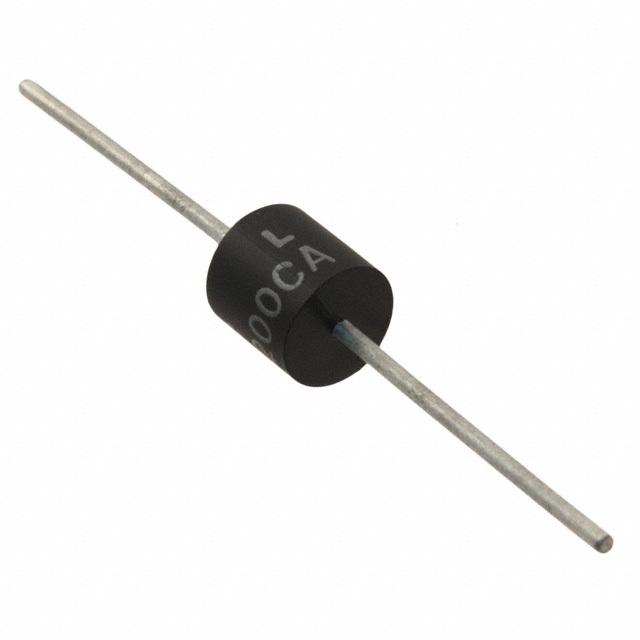

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

5KP36CA
Manufacturer

Littelfuse
ChipWorker Part#

CW15196254
Category

TVS Diode
Package

P-600
Description

5KP Series 36V 5kW Through Hole Bi-Directional TVS Diode - P-600
Documentation

Datasheet

5KP36CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

5KP36CA Specifications

Attribute	Attribute Value

Part Number	5KP36CA
Manufacturer	Littelfuse
ChipWorker Part#	CW15196254
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	P-600
Voltage Rating (DC)	36.0 V
Operating Voltage	36 V
Power Rating	5.00 kW
Breakdown Voltage	44.2 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	5000 W
Clamping Voltage	58.1 V
Test Current	5 mA
Max Breakdown Voltage	44.2 V
Peak Pulse Power	5000 W
Min Breakdown Voltage	40 V
Reverse Breakdown Voltage	40 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	expand all
Size-Length	9.1 mm
Size-Diameter	9.10 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The 5KP series Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits.
5000W Peak pulse power capability at 10x1000µs waveform
Glass passivated junction
Excellent clamping capability
Low incremental surge resistance
0.01% Repetition rate (duty cycle)
<2µA when VBR minimum >12V IR
ESD protection of data lines in accordance with IEC 61000-4-2
EFT protection of data lines in accordance with IEC 61000-4-4
Available in unidirectional and bidirectional
-55 to 175°C Operating junction temperature range
