67L090 - Sensata Technologies

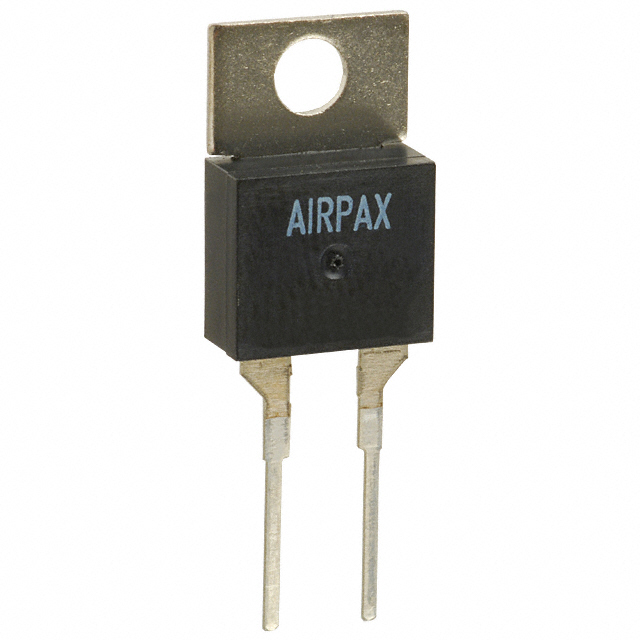

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

67L090
Manufacturer

Sensata Technologies
ChipWorker Part#

CW17098089
Category

Temperature Sensor
Package

TO-220-2
Description

Single Trip Point Switch/Digital Sensor, Rectangular, Through Hole Mount, ROHS COMPLIANT, PACKAGE-2
Documentation

Datasheet

67L090 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

67L090 Specifications

Attribute	Attribute Value

Part Number	67L090
Manufacturer	Sensata Technologies
ChipWorker Part#	CW17098089
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Contacts Type	SPST-NC
Current Rating (Max)	1 A
Current Rating (DC)	0.5A @48V
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	40 ℃
Voltage Rating (DC Max)	48 V
Voltage Rating (AC Max)	120 V
Maximum Contact Resistance (Max)	50 mΩ
	expand all
Color	Black
Operating Temperature	40℃ ~ 130℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
HTS Code	8536200020
ECCN Code	EAR99

Product Description

The 67L090 is a Subminiature Bimetal Disc Thermostat, limit open on rise. Positive snap action, single pole/single throw, which provides accurate and reliable sensing and switching in a single device. Fast, positive response with excellent repeatability. Temperature is pre-set at the factory and is non-adjustable in the field. Thermal conductivity is mainly through the terminals and the mounting bracket making the unit ideal for both surface mount and ambient air sensing. The nickel-plated copper mounting bracket comes standard or you can utilize the laminated plastic mounting bracket for increased dielectric strength and VDE approval. Airpax™ 6700 series is also ideally suited for use on crowded PC boards. Typical uses include turning on an indicator light, sounding an audible alarm, switch on a control circuit to send a message to a display screen or even switching a circuit to shut down a system.
Gold-plated contact
Ideal for surface and air sensing on PC boards and heat sinks
Up to 20000 life cycles at maximum standard amperage
Up to 100,000 life cycles at maximum gold contact amperage
-40 to 130°C Operating temperature
