6N139M ,Optocoupler, Optoisolator - Fairchild

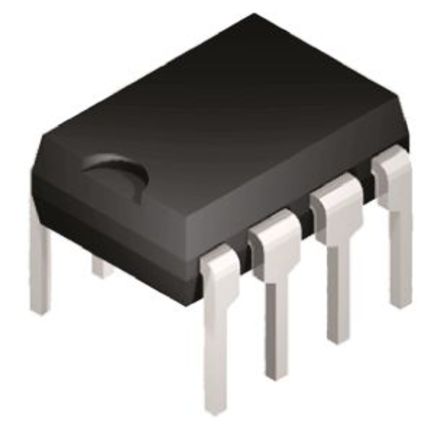

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

125 points

Part No

6N139M
Manufacturer

Fairchild
ChipWorker Part#

CW15158144
Category

Optocoupler, Optoisolator
Package

DIP-8
Description

FAIRCHILD SEMICONDUCTOR 6N139M Optocoupler, Darlington Output, 1Channel, DIP, 8Pins, 20mA, 5kV, 500%
Documentation

Datasheet
Ships from

Moscow
Наличие

1660 pcs In Stock
Estimated Price

$ 0.57

Buy 6N139M

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

6N139M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

6N139M Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	6N139M
Manufacturer	Fairchild
ChipWorker Part#	CW15158144
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.3 V
Power Dissipation	0.1 W
Isolation Voltage	5000 Vrms
Forward Current	20 mA
Output Voltage (Max)	18 V
Input Current (Min)	1 A
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	20 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	expand all
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The 6N139M is a 1-channel 8-pin High Gain Optocoupler consist of an AlGaAs LED optically coupled to a high gain split Darlington photodetector. The split Darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional Darlington phototransistor optocoupler. The combination of a very low input current of 0.5mA and a high current transfer ratio of 2000% makes this family particularly useful for input interface to MOS, CMOS, LSTTL and EIA RS232C, while output compatibility is ensured to CMOS as well as high fan-out TTL requirements. An internal noise shield provides exceptional common mode rejection of 10kV/µs. It is suitable for digital logic ground isolation, telephone ring detector and high common mode noise line receiver.
