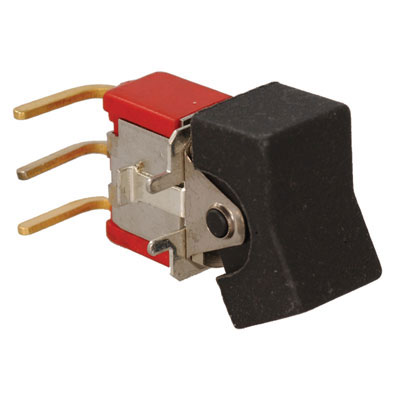

7101J1ABE2 ,Rocker Switch, Paddle Switch, Switch Rocker - C&K Components

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

103 points

Part No

7101J1ABE2
Manufacturer

C&K Components
ChipWorker Part#

CW40185954
Category

Rocker Switch, Paddle Switch, Switch Rocker
Package

-
Description

Switch Rocker ON None ON SPDT PC Pins Long Rocker 20VAC 20VDC 0.4VA
Documentation

Datasheet
Ships from

Moscow
Наличие

20838 pcs In Stock
Estimated Price

$ 4.05

Buy 7101J1ABE2

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

7101J1ABE2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

7101J1ABE2 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	7101J1ABE2
Manufacturer	C&K Components
ChipWorker Part#	CW40185954
Category	Rocker Switch, Paddle Switch, Switch Rocker
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Contact Plating	Tin
Voltage Rating (DC)	20 V
Actuator Type	Rocker
Voltage Rating (AC)	20 V
Current Rating	5 A
Insulation Resistance	1 GΩ
Number of Rows	1 Row
Contacts Type	SPDT
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 V
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<10 mΩ
	expand all
Size-Length	12.7 mm
Size-Height	9.27 mm
Color	Black
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509040
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

**Features:**
• Multi-pole and multi-position
• Wide variety of actuator and termination options
• Epoxy terminal-seal compatible with bottom wash cleaning
**Typical Applications:**
• Telecommunications
• Instrumentation
• Medical equipment
