744235220 - Wurth Electronics

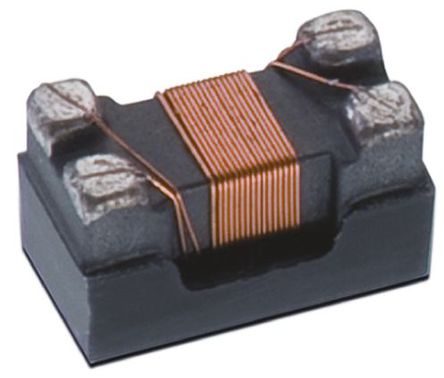

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

744235220
Manufacturer

Wurth Electronics
ChipWorker Part#

CW25604668
Category

Inductor Choke
Package

1812
Description

WURTH ELEKTRONIK 744235220 Filter, Line, Common Mode, 22μH, WE-CNSW Series, 8KΩ, 250mA, 4.5mm x 3.2mm x 2.8mm
Documentation

Datasheet

744235220 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

744235220 Specifications

Attribute	Attribute Value

Part Number	744235220
Manufacturer	Wurth Electronics
ChipWorker Part#	CW25604668
Category	Inductor Choke
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	1812
Voltage Rating (DC)	60 V
Current Rating	250 mA
Inductance	22 µH
Current Rating (Max)	250 mA
Current Rating (DC)	250 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 V
Resistance (DC Max)	2.65 Ω
	expand all
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	2.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

The great advantage of Wurth Electronics WE-CNSW series is the high suppression of common mode EMI noise at high frequencies, while not influencing the data signal of the interface. Wurth Electronics offers standard WE-CNSW and WE-CNSW High Frequency (HF) series. The WE-CNSW filters are available in package sizes: 0603, 0805, 1206 and 1812 with an ideal operating frequency range of 10MHz up to 1GHz. The WE-CNSW HF filters are available in package sizes 0504 and 0805 with an ideal operating frequency range of 100MHz up to 4GHz.
Current compensated data line filter
High common mode noise suppression at high frequencies
Small influence on high speed signals through winding symmetry
Recommended solder profile: Reflow
Operating temperature: -40°C to +125°C
IEEE 1394 (Firewire)
