74ACT245SC - Fairchild

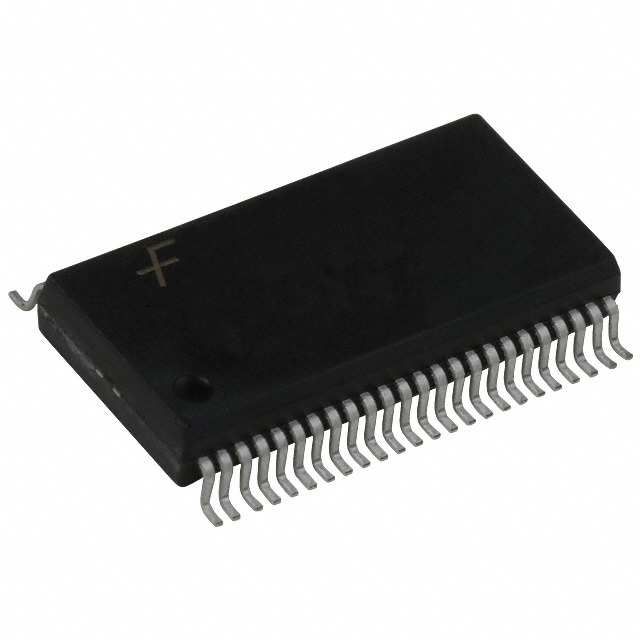

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74ACT245SC
Manufacturer

Fairchild
ChipWorker Part#

CW7771962
Category

Logic Controller, Logic IC
Package

SOIC-20
Description

Bus Transceiver Single 8Channel 3-ST 20Pin SOIC W Rail
Documentation

Datasheet

74ACT245SC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

74ACT245SC Specifications

Attribute	Attribute Value

Part Number	74ACT245SC
Manufacturer	Fairchild
ChipWorker Part#	CW7771962
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	5.00 V
Number of Outputs	8 Output
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Quiescent Current	40 µA
Number of Gates	8 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The 74ACT245SC is an octal Bidirectional Transceiver with 3-state inputs/outputs and is intended for bus-oriented applications. Current sinking capability is 24mA at both the A and B ports. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active-HIGH) enables data from A ports to B ports, receive (active-LOW) enables data from B ports to A ports. The output enables input, when HIGH disables both A and B ports by placing it in a HIGH Z condition.
ICC and IOZ reduced by 50%
Non-inverting buffers
Bidirectional data path
A and B Outputs source/sink 24mA
TTL-compatible inputs
