TLP785 - Toshiba

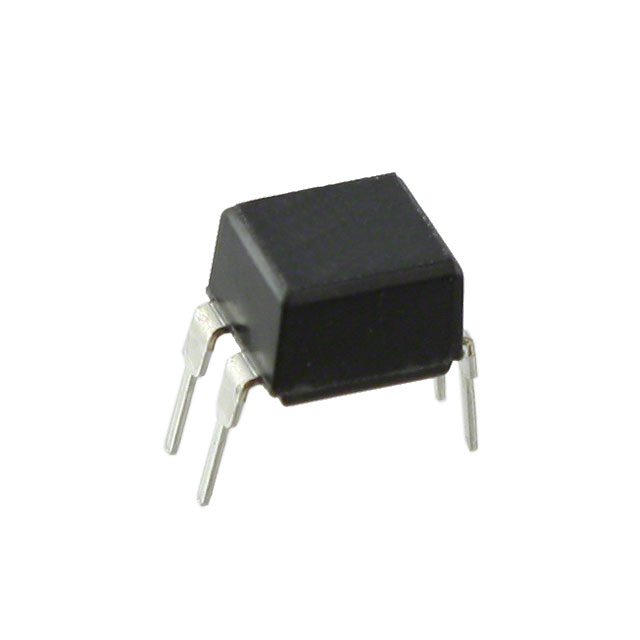

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLP785
Manufacturer

Toshiba
ChipWorker Part#

CW22634800
Category

Optocoupler, Optoisolator
Package

DIP-4
Description

Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 25mA, 5kV, 50%
Documentation

Datasheet

TLP785 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLP785 Specifications

Attribute	Attribute Value

Part Number	TLP785
Manufacturer	Toshiba
ChipWorker Part#	CW22634800
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Rise/Fall Time	2μs, 3μs
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.15 V
Isolation Voltage	5 kV
Output Voltage (Max)	80 V
Forward Current (Max)	25 mA
	expand all
Operating Temperature	-55℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
