74LCX125MTC - Fairchild

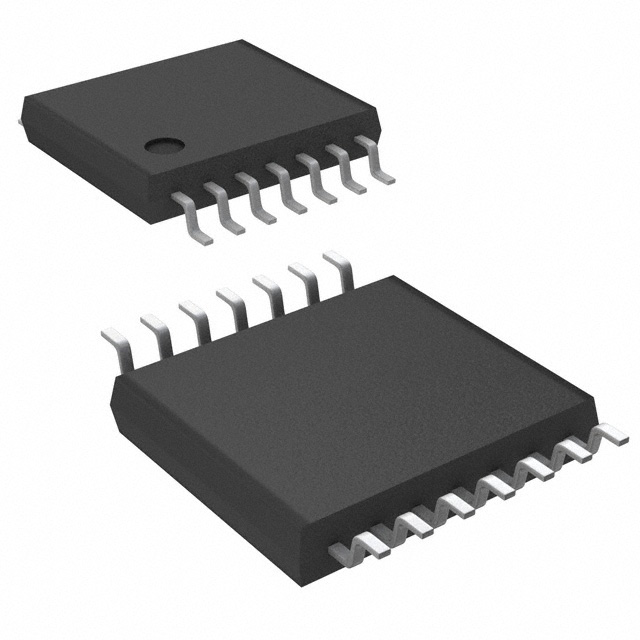

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74LCX125MTC
Manufacturer

Fairchild
ChipWorker Part#

CW5608596
Category

Logic Controller, Logic IC
Package

TSSOP-14
Description

FAIRCHILD SEMICONDUCTOR 74LCX125MTC Buffer, Non-Inverting, with 5V Tolerant Input and Output, 2V to 3.6V, TSSOP-14
Documentation

Datasheet

74LCX125MTC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74LCX125MTC Specifications

Attribute	Attribute Value

Part Number	74LCX125MTC
Manufacturer	Fairchild
ChipWorker Part#	CW5608596
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	3.30 V
Number of Outputs	4 Output
Output Current	24 mA
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	6 Bit
Quiescent Current	10 µA
Number of I/O Pins	4 IO
Output Current (Max)	24 mA
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The 74LCX125MTC is a low voltage independent non-inverting Quad Buffer with 3-state outputs. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LCX125 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Power down high impedance inputs and outputs
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds JEDEC 78 conditions
ESD performance - Human body model >2000V Machine model >100V
±24mA Output drive
2.3 to 3.6V VCC Specifications provided
5V Tolerant inputs and outputs
6ns Propagation delay (tpd), 10µA ICC maximum
Supports live insertion/withdrawal
