Part No

78250MC
Manufacturer

muRata
ChipWorker Part#

CW8838167
Category

Voltage Converter
Package

SMD
Description

78250 Series 1Ω 2mH SMT MAX250/MAX251 Compatible Converter Transformer
Documentation

Datasheet

78250MC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

78250MC Specifications

Attribute	Attribute Value

Part Number	78250MC
Manufacturer	muRata
ChipWorker Part#	CW8838167
Category	Voltage Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD
Current Rating	300 mA
Output Current	300 mA
Inductance	2 mH
DC Resistance (DCR)	1 Ω
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	9.52 mm
Size-Width	9 mm
Size-Height	6.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

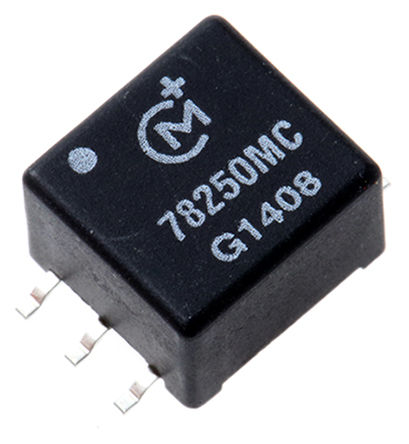

The 78250MC is a 300mA low-profile surface mount Converter Transformer with matte tin finish industry standard pin-outs and toroidal-style construction. This 78250 series transformer is fully encapsulated and rated with 2mH primary inductance and 1500Vrms isolation voltage. The materials used for this transformer are mates with UL94V-0 standards. This converter transformer is specifically designed for use with Maxim chipsets to provide isolated RS232 interfaces. Carefully controlled turns ratios ensure consistent performance whilst a toroidal construction minimizes EMI.
