8414NG - EBM-Papst

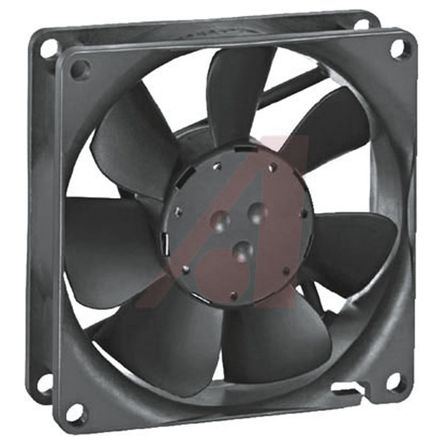

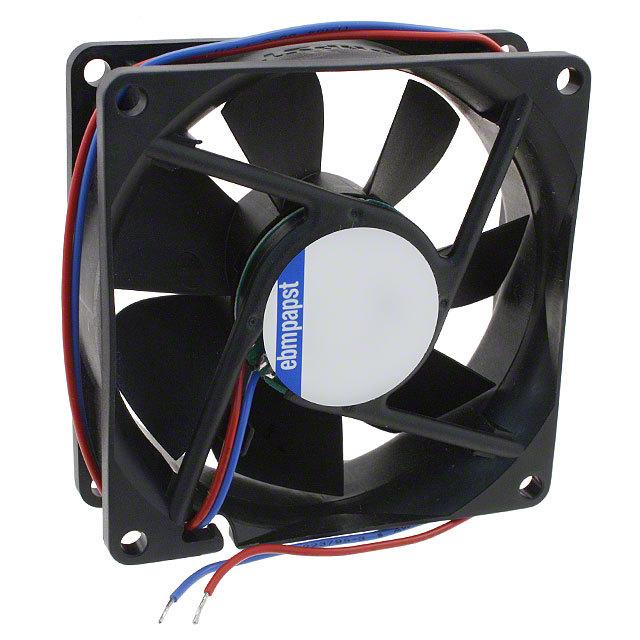

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

8414NG
Manufacturer

EBM-Papst
ChipWorker Part#

CW39935890
Category

Fan, DC Fan
Package

Axial
Description

DC Fan Axial Sintec-Sleeve Bearing 24V 18V to 28V 40.6CFM 32dB 80 X 80 X 25.4mm
Documentation

Datasheet

8414NG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

8414NG Specifications

Attribute	Attribute Value

Part Number	8414NG
Manufacturer	EBM-Papst
ChipWorker Part#	CW39935890
Category	Fan, DC Fan
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Axial
Supply Voltage (DC)	24.0 V
Voltage Rating (DC)	24.0 V
Power Rating	2.00 W
Input Voltage (DC)	24.0 V
Power Consumption	2 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 VDC
Supply Voltage	24 VDC
	expand all
Size-Length	80 mm
Size-Width	80 mm
Size-Height	25 mm
Lead Length	310 mm
Size-Thickness	25 mm
Material	Plastic
Weight	95 g
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
Life (Hours)	70000h @40℃
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
HTS Code	8414596090
ECCN Code	EAR99

Product Description

**Highlights:**
* Ball bearings and sleeve bearings available.
* Some models suitable for use at high ambient temperatures up to 85°C.
**General Characteristics:**
* Material: fibreglass-reinforced plastic. Impeller PA, housing PBT.
* Fully integrated electronic commutation.
* Protected against reverse polarity and locking.
* Connection via single strands AWG 24, TR 64. Bared and tin-plated.
* Air exhaust over struts. Direction of rotation counter-clockwise, seen on rotor.
* Mass: 95 g.
