AD1555BP - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD1555BP
Manufacturer

ADI
ChipWorker Part#

CW39235837
Category

Analog to Digital, ADC IC
Package

PLCC-28
Description

ADC Single Delta-Sigma 256KSPS 24Bit Serial 28Pin PLCC
Documentation

Datasheet

AD1555BP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD1555BP Specifications

Attribute	Attribute Value

Part Number	AD1555BP
Manufacturer	ADI
ChipWorker Part#	CW39235837
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PLCC-28
Number of Circuits	1 Circuit
Number of Bits	24 Bit
Power Dissipation	77 mW
Sample Rate	256 ksps
Resolution (Bits)	24.0 Bit
Input Impedance	20.0 kΩ
Number of ADCs	1 ADC
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	96 mW
	expand all
Size-Height	3.94 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	No

Product Description

GENERAL DESCRIPTION

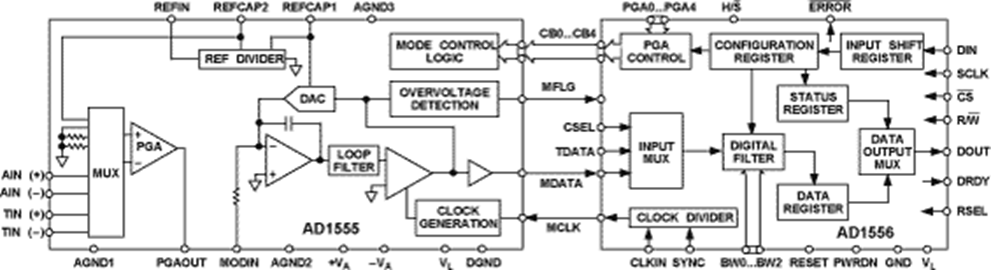

The AD1555 is a complete sigma-delta modulator, combined with a programmable gain amplifier intended for low frequency,high dynamic range measurement applications. The AD1555 outputs a ones-density bitstream proportional to the analog input. When used in conjunction with the AD1556 digital filter/ decimator, a high performance ADC is realized.

expand all
