AD204JN ,Amplifier, Buffer IC - ADI

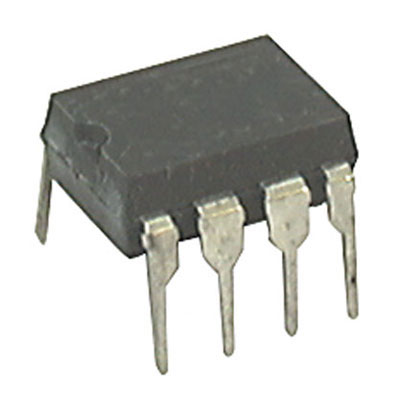

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

133 points

Part No

AD204JN
Manufacturer

ADI
ChipWorker Part#

CW20032100
Category

Amplifier, Buffer IC
Package

DIP-10
Description

ANALOG DEVICES AD204JN Isolation Amplifier, 1 Amplifier, 15mV, 750Vrms, DIP, 10Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

30552 pcs In Stock
Estimated Price

$ 0.21

Buy AD204JN

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD204JN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD204JN Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD204JN
Manufacturer	ADI
ChipWorker Part#	CW20032100
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	DIP-10
Number of Circuits	4 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	130 dB
Bandwidth	5 kHz
Gain Bandwidth Product	5 kHz
Isolation Voltage	750 Vrms
Input Offset Voltage	15 mV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	130 dB
	expand all
Size-Height	8.9 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

National Semiconductor

1.25 $/шт.

Product Description

Product Details
The AD204 is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed and/or transmitted without a galvanic connection. This industry standard isolation amplifier offers a complete isolation function, with both signal and power isolation provided for in a single compact plastic SIP or DIP style package. The AD204 is powered by an externally supplied clock, such as the recommended AD246 Clock Driver.
The AD204 provides total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling. The functionally complete AD204 eliminates the need for an external, user-supplied dc/dc converter. This permits the designer to minimize the necessary circuit overhead and consequently reduce the overall design and component costs.
The design of the AD204 emphasizes maximum flexibility and ease of use, including the availability of an uncommitted op amp on the input stage. It features a bipolar ±5 V output range, an adjustable gain range of from 1 to 100 V/V, ±0.025% max nonlinearity (K grade), 130 dB of CMR and consumes a low 35 mW of power.
**Applications**
Multichannel Data Acquisition
Current Shunt Measurements
Motor Controls
Process Signal Isolation
High Voltage Instrumentation Amplifier
### Features and Benefits
Small Size: 4 Channels/Inch
Low Power; 35 mW
High Accuracy: ±0.025% Max
Nonlinearity (K Grades)
High CMR: 130 dB (Gain = 100 V/V)
Wide Bandwidth: 5 kHz Full-Power
High CMV Isolation: ±2000 V pk
Continuous (K Grade)
(Signal and Power)
Isolated Power Outputs
Uncommitted Input Amplifier
