AD22280 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | AD22280 |
| Manufacturer | ADI |
| ChipWorker Part# | CW95194866 |
| Category | Acceleration Sensor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | LCC-8 |
| Bandwidth | 400 Hz |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 6 VDC |
| Supply Voltage (Min) | 3.5 VDC |
| expand all | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 1.98 mm |
| Operating Temperature | -40℃ ~ 105℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
Product Description
- GENERAL DESCRIPTION

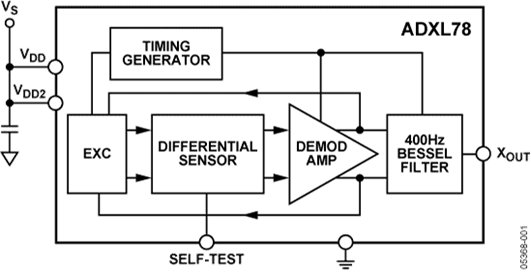

- The ADXL78 is a low power, complete single-axis accelerometer with signal conditioned voltage outputs that are on a single monolithic IC. This product measures acceleration with a full scale range of ±35 g, ±50 g, or ±70 g(minimum). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity).
- FEATURES
- Complete acceleration measurement system on a single monolithic IC
- Available in ±35 g, ±50 g, or ±70 goutput full-scale ranges
- Full differential sensor and circuitry for high resistance to EMI/RFI
- Environmentally robust packaging
- Complete mechanical and electrical self-test on digital command
- Output ratiometric to supply
- Sensitive axes in the plane of the chip
- High linearity (0.2% of full scale)
- Frequency response down to dc
- Low noise
- Low power consumption (1.3 mA)
- Tight sensitivity tolerance and 0 goffset capability
- Largest available prefilter clipping headroom
- 400 Hz, 2-pole Bessel filter
- Single-supply operation
- Compatible with Sn/Pb and Pb-free solder processes
- Qualified for automotive applications
