CSD95377Q4M ,DC to DC Converter - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

62 points

Part No

CSD95377Q4M
Manufacturer

TI
ChipWorker Part#

CW15314925
Category

DC to DC Converter
Package

VSON-Clip-8
Description

Power Stage 8Pin VSON-CLIP EP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.92

Buy CSD95377Q4M

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CSD95377Q4M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CSD95377Q4M Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CSD95377Q4M
Manufacturer	TI
ChipWorker Part#	CW15314925
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-Clip-8
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	30 A
Power Dissipation	8 W
Rise Time	60 ns
Switching Frequency	2000 kHz
Input Voltage (Max)	16 V
Input Voltage (Min)	4.5 V
Fall Time	60 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	8000 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

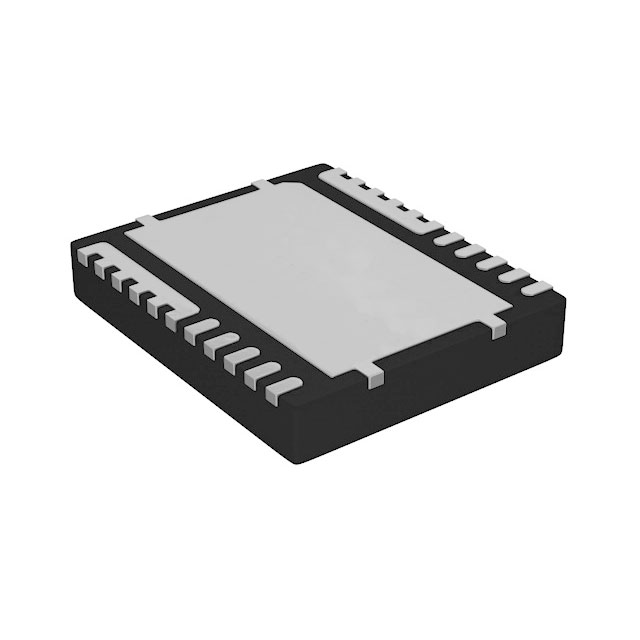

Similar & Replacement Parts

Similar products

Product Description

The CSD95377Q4M NexFET™ power stage is a highly-optimized design for use in a high power, high density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. The driver IC has built-in selectable diode emulation function enables Discontinuous Conduction Mode (DCM) operation to improve light load efficiency. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.5 mm × 4.5 mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
