Part No

AD5235
Manufacturer

ADI
ChipWorker Part#

CW353122996
Description

Nonvolatile Memory, Dual 1024Position Digital Potentiometer Data Sheet (Rev F, 06/2012
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD5235

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD5235 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD5235 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD5235
Manufacturer	ADI
ChipWorker Part#	CW353122996
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

**GENERAL DESCRIPTION**

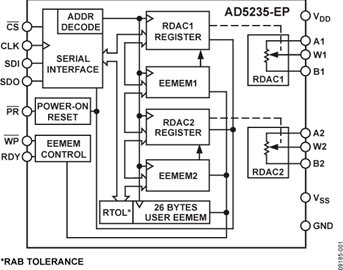

The AD5235 is a dual-channel, nonvolatile memory, digitally controlled potentiometer2 with 1024-step resolution, offering guaranteed maximum low resistor tolerance error of ±8%. The device performs the same electronic adjustment function as a mechanical potentiometer with enhanced resolution, solid state reliability, and superior low temperature coefficient performance. The versatile programming of the AD5235 via an SPI®-compatible serial interface allows 16 modes of operation and adjustment including scratchpad programming, memory storing and restoring, increment/decrement, ±6 dB/step log taper adjustment, wiper setting readback, and extra EEMEM for user defined information such as memory data for other components,
look-up table, or system identification information.
**FEATURES**
**Dual-channel, 1024-position resolution**
**25 kΩ, 250 kΩ nominal resistance**
**Maximum ±8% nominal resistor tolerance error**
**Low temperature coefficient: 35 ppm/°C**
**2.7 V to 5 V single supply or ±2.5 V dual supply**
**SPI-compatible serial interface**
**Nonvolatile memory stores wiper settings**
**Power-on refreshed with EEMEM settings**
**Permanent memory write protection**
**Resistance tolerance stored in EEMEM**
**26 bytes extra nonvolatile memory for user-defined ****information**
**1M programming cycles**
**100-year typical data retention**
**APPLICATIONS**
**DWDM laser diode driver, optical supervisory systems**
**Mechanical potentiometer replacement**
**Instrumentation: gain, offset adjustment**
**Programmable voltage-to-current conversion**
**Programmable filters, delays, time constants**
**Programmable power supply**
**Low resolution DAC replacement**
**Sensor calibration**
