AD5338 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5338
Manufacturer

ADI
ChipWorker Part#

CW353118566
Description

2.5V to 5.5V, 250μA, 2-Wire Interface Dual Voltage Output, 10Bit D/A Converter
Documentation

Datasheet

AD5338 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5338 Specifications

Attribute	Attribute Value

Part Number	AD5338
Manufacturer	ADI
ChipWorker Part#	CW353118566
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details
The AD5337/AD5338/AD5339 are dual 8-, 10-, and 12-bit buffered voltage output DACs, respectively. Each part is housed in an 8-lead MSOP package and operates from a single 2.5 V to 5.5 V supply, consuming 250 μA at 3 V. On-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/μs. A 2-wire serial interface operates at clock rates up to 400 kHz. This interface is SMBus compatible at VDD < 3.6 V. Multiple devices can be placed on the same bus.

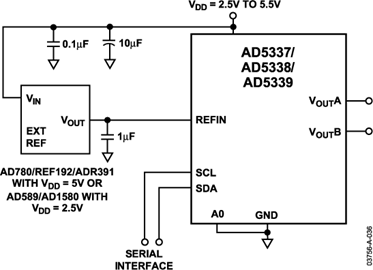

The references for the two DACs are derived from one reference pin. The outputs of all DACs can be updated simultaneously using the software LDAC function. The parts incorporate a power-on reset circuit to ensure that the DAC outputs power up to 0 V and remain there until a valid write to the device takes place. A software clear function resets all input and DAC registers to 0 V. A power-down feature reduces the current consumption of the devices to 200 nA @ 5 V (80 nA @ 3 V).
The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is typically 1.5 mW at 5 V and 0.75 mW at 3 V, reducing to 1 μW in power-down mode.
**Applications**
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Programmable attenuators
Industrial process control
### Features and Benefits
AD5337: 2 buffered 8-bit DACs in 8-lead MSOP
AD5338, AD5338-1: 2 buffered 10-bit DACs in 8-lead MSOP
AD5339: 2 buffered 12-bit DACs in 8-lead MSOP
Low power operation: 250 μA @ 3 V, 300 μA @ 5 V
2-wire (I2C-compatible) serial interface
2.5 V to 5.5 V power supply
Guaranteed monotonic by design over all codes
Power-down to 80 nA @ 3 V, 200 nA @ 5 V
3 power-down modes
Double-buffered input logic
Output range: 0 V to VREF
Power-on reset to 0 V
