AD5663 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5663
Manufacturer

ADI
ChipWorker Part#

CW353135467
RoHS

Lead free / RoHS Compliant
Description

2.7V to 5.5V, 250uA, Rail-to-Rail Output, Dual 16Bit nanoDAC
Documentation

Datasheet

AD5663 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5663 Specifications

Attribute	Attribute Value

Part Number	AD5663
Manufacturer	ADI
ChipWorker Part#	CW353135467
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Product Description

Product Details

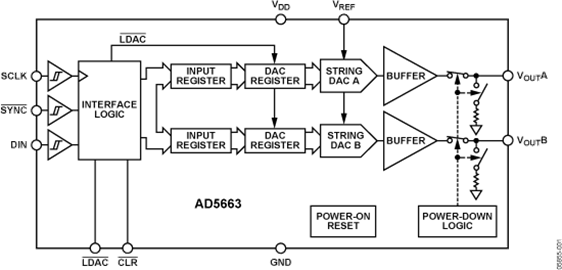

The AD5663, a member of th _nano_DAC® family, is a low power, dual, 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.
The AD5663 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V or midscale (AD5663BRMZ-1) and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.
The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment. The power consumption is 1.25 mW at 5 V, going down to 2.4 μW in power-down mode.
The on-chip precision output amplifier of the AD5663 allows rail-to-rail output swing to be achieved.
The AD5663 uses a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
**Product Highlights**
1. Dual 16-bit DAC; relative accuracy of ±12 LSBs maximum.
2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP_WD packages.
3. Low power; typically consumes 0.6 mW at 3 V and 1.25 mW at 5 V.
4. 7 μs maximum settling time.
**Applications**
Process control
Data acquisition systems
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Programmable attenuators
### Features and Benefits
Low power, dual 16-bit nanoDAC
Relative accuracy: ±12 LSBs maximum
Guaranteed monotonic by design
10-lead MSOP and 3 mm × 3 mm LFCSP_WD
2.7 V to 5.5 V power supply
Per channel power-down
Power-on reset to zero scale or midscale
Hardware LDAC and CLR functions
Serial interface; up to 50 MHz
