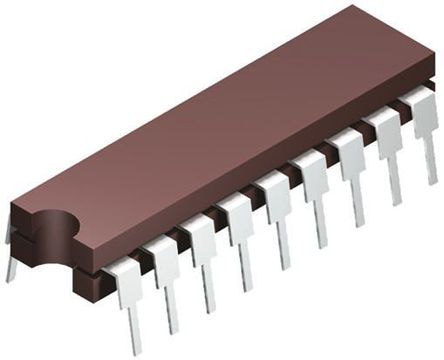

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAD570JD
-
ManufacturerADI
-
ChipWorker Part#CW1405863
-
CategoryAnalog to Digital, ADC IC
-
PackageCDIP-18
-
DescriptionANALOG DEVICES AD570JD Analog to Digital Converter, 8Bit, -16.5V, 4.5V, DIP
-
DocumentationDatasheet
