AD627AN - ADI

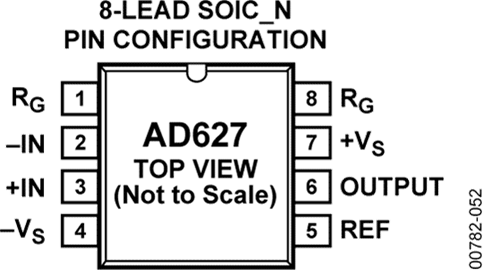

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD627AN
Manufacturer

ADI
ChipWorker Part#

CW77410419
Category

Instrumentation Amplifier IC
Package

DIP
Description

IC INSTRUMENTATION AMPLIFIER, 200uV OFFSET-MAX, 0.08MHz BAND WIDTH, PDIP8, PLASTIC, MS-001, DIP-8, Instrumentation Amplifier
Documentation

Datasheet

AD627AN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD627AN Specifications

Attribute	Attribute Value

Part Number	AD627AN
Manufacturer	ADI
ChipWorker Part#	CW77410419
Category	Instrumentation Amplifier IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	1300 mW
Slew Rate	50.0 mV/μs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1300 mW
Minimum CMRR Range	77 dB
Supply Voltage (Max)	30V ~ 50V
	expand all
Size-Height	3.3 mm
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
