AD711 - ADI

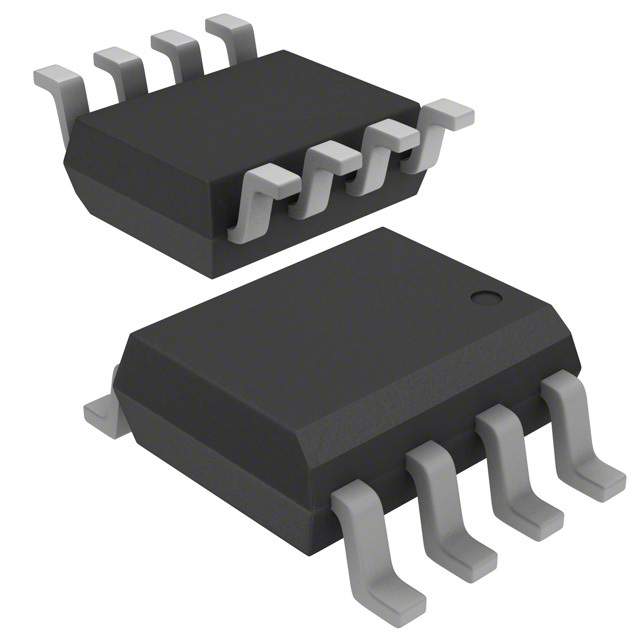

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD711
Manufacturer

ADI
ChipWorker Part#

CW130172776
RoHS

Lead free / RoHS Compliant
Description

Precision, Low Cost, High Speed, BiFET Op Amp
Documentation

Datasheet

AD711 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD711 Specifications

Attribute	Attribute Value

Part Number	AD711
Manufacturer	ADI
ChipWorker Part#	CW130172776
Documentation	Datasheet
Case/Package	SOIC
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Product Description

PRODUCT DESCRIPTION
The AD711 is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps.
The superior ac and dc performance of this op amp makes it suitable for active filter applications. With a slew rate of 16 V/ms and a settling time of 1 ms to ±0.01%, the AD711 is ideal as a buffer for 12-bit D/A and A/D Converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier.
FEATURES
Enhanced Replacement for LF411 and TL081
AC PERFORMANCE
Settles to ±0.01% in 1.0 μs
16 V/μs min Slew Rate (AD711J)
3 MHz min Unity Gain Bandwidth (AD711J)
DC PERFORMANCE
0.25 mV max Offset Voltage: (AD711C)
3 μV/°C max Drift: (AD711C)
200 V/mV min Open-Loop Gain (AD711K)
4 μV p-p max Noise, 0.1 Hz to 10 Hz (AD711C)
Available in Plastic Mini-DIP, Plastic SOIC, Hermetic
Cerdip, and Hermetic Metal Can Packages
MIL-STD-883B Parts Available
Available in Tape and Reel in Accordance with
EIA-481A Standard
Surface Mount (SOIC)
Dual Version: AD712
