AD711KRZ ,Operational Amplifier, OP Amp IC - ADI

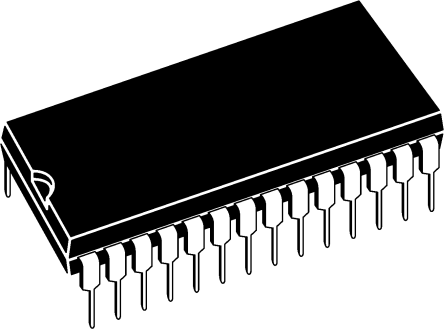

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

204 points

Part No

AD711KRZ
Manufacturer

ADI
ChipWorker Part#

CW435628
Category

Operational Amplifier, OP Amp IC
Package

SOIC-8
Description

ANALOG DEVICES AD711KRZ Operational Amplifier, Single, 1 Amplifier, 4MHz, 20V/µs, ± 4.5V to ± 18V, SOIC, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 8.07

Buy AD711KRZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD711KRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD711KRZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD711KRZ
Manufacturer	ADI
ChipWorker Part#	CW435628
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	2.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	500 mW
Common Mode Rejection Ratio	76 dB
Input Capacitance	5.50 pF
Bandwidth	4 MHz
Slew Rate	20.0 V/μs
Gain Bandwidth Product	4 MHz
Input Impedance	3.00 TΩ
Input Offset Voltage	200 µV
Input Bias Current	15 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	4 MHz
Power Dissipation (Max)	500 mW
Minimum CMRR Range	76 dB
Supply Voltage (Max)	18 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The AD711KRZ is a precision high speed monolithic BiFET Operational Amplifier offering high-performance. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps. The superior AC and DC performance of this op amp makes it suitable for active filter applications. With a slew rate of 16V/ms and a settling time of 1ms to ±0.01%, the AD711 is ideal as a buffer for 12-bit D/A and A/D converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier. The combination of excellent noise performance and low input current also make the AD711 useful for photo diode preamps. Common-mode rejection of 88dB and open loop gain of 400V/mV ensure 12-bit performance even in high-speed unity gain buffer circuits.
Enhanced replacement for LF411 and TL081
Settles to ±0.01% in 1.0µs
200V/mV Minimum open-loop gain
500mW Internal power dissipation
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
