AD7265BSUZ ,Analog to Digital, ADC IC - ADI

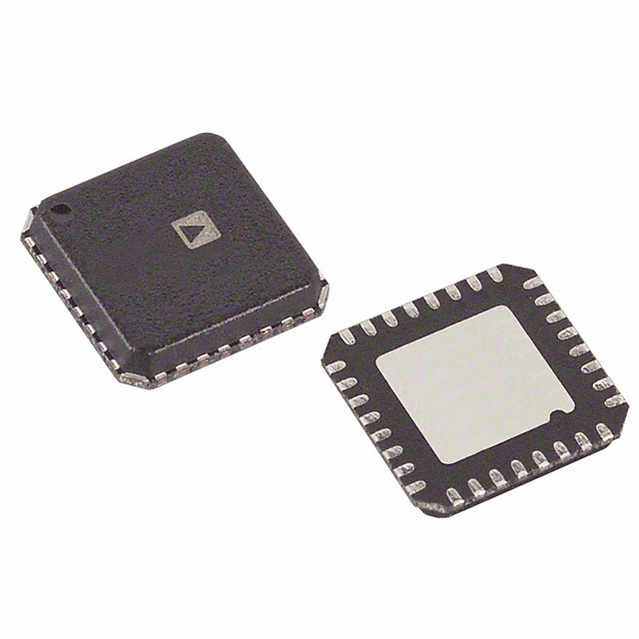

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

170 points

Part No

AD7265BSUZ
Manufacturer

ADI
ChipWorker Part#

CW341083
Category

Analog to Digital, ADC IC
Package

TQFP-32
Description

12Channel Dual ADC SAR 1MSPS 12Bit Serial 32Pin TQFP Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 6.03

Buy AD7265BSUZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD7265BSUZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD7265BSUZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD7265BSUZ
Manufacturer	ADI
ChipWorker Part#	CW341083
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	TQFP-32
Supply Current	2.30 mA
Number of Channels	12 Channel
Number of Positions	32 Position
Number of Bits	12 Bit
Power Dissipation	21 mW
Sample Rate	1 Msps
Resolution (Bits)	12.0 Bit
Input Capacitance	45.0 pF
Number of ADCs	2 ADC
Number of Inputs	6, 12 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	21 mW
Number of Input Channels	12, 6 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.5V, 5V
	expand all
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD7265 is a dual, 12-bit, high speed, low power, successive approximation ADC that operates from a single 2.7 V to 5.25 V power supply and features throughput rates of up to 1 MSPS. The device contains two ADCs, each preceded by a 3-channel multiplexer, and a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30 MHz.
The conversion process and data acquisition use standard control inputs allowing easy interfacing to microprocessors or DSPs. The input signal is sampled on the falling edge of CS; conversion is also initiated at this point. The conversion time is determined by the SCLK frequency. The AD7265 uses advanced design techniques to achieve very low power dissipation at high throughput rates. With 5 V supplies and a 1 MSPS throughput rate, the part consumes 4 mA maximum. The part also offers flexible power/throughput rate management when operating in normal mode, because the quiescent current consumption is so low.
The analog input range for the part can be selected to be a 0 V to VREF(or 2 × VREF) range, with either straight binary or twos complement output coding. The AD7265 has an on-chip 2.5 V reference that can be overdriven when an external reference is preferred. This external reference range is 100 mV to VDD. The AD7265 is available in 32-lead LFCSP and 32-lead TQFP.
**Product Highlights**
1. Two Complete ADC Functions Allow Simultaneous Sampling and Conversion of Two Channels.
Each ADC has three fully/pseudo differential pairs, or six single-ended channels, as programmed. The conversion result of both channels is simultaneously available on separate data lines, or in succession on one data line if only one serial port is available.
2. High Throughput with Low Power Consumption.
The AD7265 offers a 1 MSPS throughput rate with 9 mW maximum power dissipation when operating at 3 V.
3. The AD7265 offers both a standard 0 V to VREF input range and a 2 × V REF input range.
4. No Pipeline Delay.
The part features two standard successive approximation ADCs with accurate control of the sampling instant via a CS input and once off conversion control.
### Features and Benefits
Dual 12-bit, 3-channel ADC
Throughput rate: 1 MSPS
Specified for VDD of 2.7 V to 5.25 V
Power consumption
7 mW at 1 MSPS with 3 V supplies
17 mW at 1 MSPS with 5 V supplies
Pin-configurable analog inputs
12-channel single-ended inputs
6-channel fully differential inputs
6-channel pseudo differential inputs
70 dB SINAD at 50 kHz input frequency
Accurate on-chip reference: 2.5 V
±0.2% maximum at 25°C, 20 ppm/°C maximum
Dual conversion with read 875 ns, 16 MHz SCLK
High speed serial interface
SPI®-/QSPI™-/MICROWIRE™-/DSP-compatible
−40°C to +125°C operation
Shutdown mode: 1 µA maximum
32-lead LFCSP and 32-lead TQFP
