AD7663ASTZ - ADI

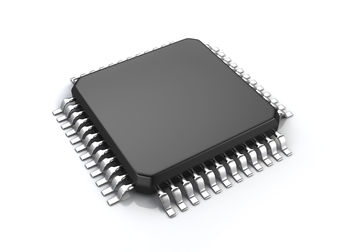

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAD7663ASTZ
-
ManufacturerADI
-
ChipWorker Part#CW392100
-
CategoryAnalog to Digital, ADC IC
-
PackageLQFP-48
-
DescriptionADC Single SAR 250KSPS 16Bit Parallel/Serial 48Pin LQFP
-
DocumentationDatasheet
