AD8029 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

23 points

Part No

AD8029
Manufacturer

ADI
ChipWorker Part#

CW622307979
Package

SC-70
Description

Low Power, High Speed Rail-to-Rail Input/Output Amplifier
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD8029

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD8029 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD8029 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD8029
Manufacturer	ADI
ChipWorker Part#	CW622307979
Documentation	Datasheet
Case/Package	SC-70
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Product Description

Product Details
The AD8029 is a single, rail-to-rail input and output high speed amplifier with a quiescent current of only 1.3 mA per amplifier. Despite its low power consumption, the amplifier provides excellent performance with 125MHz small signal bandwidth and 60 V/µs slew rate. ADI"s proprietary XFCB process enables high speed and high performance on low power.
This amplifier exhibits true single-supply operation with rail-to-rail input and output performance for supply voltages ranging from 2.7V to 12V. The input voltage range extends 200 mV beyond each rail without phase reversal. The dynamic range of the output extends to within 40 mV of each rail.
The AD8029 provides excellent signal quality with minimal power dissipation. At G=+1, SFDR is -72dBc at 1MHz and settling time to 0.1% is only 80 ns. Low distortion and fast settling performance makes this amplifier a suitable driver for single-supply A/D converters.
The versatility of the AD8029 allows the user to operate the amplifier on a wide range of supplies while consuming less than 6.5 mW of power. This feature extends the operation time in applications ranging from battery-powered systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation.
The AD8029 is the only low power, rail-to-rail input and output high speed amplifier available in SOT23 and SC70 micro packages. The amplifier is rated over the extended industrial temperature range, -40°C to +125°C.
### Features and Benefits
Low Power
\- 1.3mA supply current/amplifier
Offset voltage: 6 mV max
High Speed
\- 125MHz, -3 dB Bandwidth (G=+1)
\- 60V/µs Slew Rate
\- 80ns Settling Time to 0.1%
Wide Supply Range: 2.7V to 12V
Rail-to-Rail Input and Output
No phase reversal, inputs
200 mV beyond rails
Low input bias current
+0.7µA to -1.5 µA

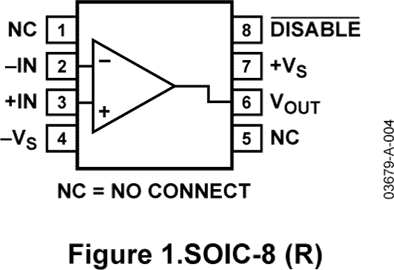

Small Packaging
\- SOIC-8, SC70-6
