AD8032 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8032
Manufacturer

ADI
ChipWorker Part#

CW122430300
RoHS

Lead free / RoHS Compliant
Description

2.7V, 800 レA, 80MHz Rail-to-Rail I/O Amplifiers
Documentation

Datasheet

AD8032 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8032 Specifications

Attribute	Attribute Value

Part Number	AD8032
Manufacturer	ADI
ChipWorker Part#	CW122430300
Documentation	Datasheet
Case/Package	SOIC
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Product Description

Product Details
The AD8032 (dual) is a single supply voltage feedback amplifier that features high speed performance with 80 MHz of small signal bandwidth, 30 V/µs slew rate and 125 ns settling time. This performance is possible while consuming less than 4.0 mW of power from a single +5 V supply. This feature increases the operation time of high speed, battery-powered systems without compromising dynamic performance.
The AD8032 has true single supply capability with rail-to-rail input and output characteristics and is specified for +2.7 V, +5 V, and ±5 V supplies. The input voltage range can extend to 500 mV beyond each rail. The output voltage swings to within 20 mV of each rail providing the maximum output dynamic range.
The AD8032 also offers excellent signal quality for only 800 µA of supply current per amplifier; THD is -62 dBc with a 2 V p-p, 1 MHz output signal, and -86 dBc for a 100 kHz, 4.6 V p-p signal on +5 V supply. The low distortion and fast settling time makes it ideal as a buffer to single supply ADCs.

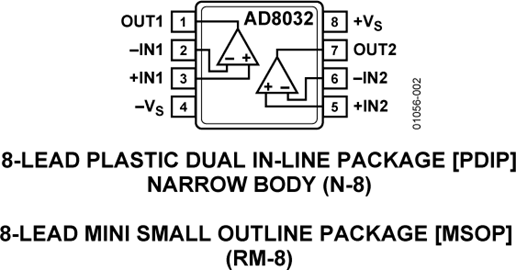

Operating on supplies from +2.7 V to +12 V and dual supplies up to ±6 V, the AD8032 is ideal for a wide range of applications, from battery operated systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation. The AD8032 is available in 8-lead PDIP, 8-lead SOIC_N, and 8-lead MSOP packages and operates over the industrial temperature range of -40°C to +85°C.
AD8031 \- Single Amplifier
### Features and Benefits
Low power
Supply current 800 µA/amplifier
Fully specified at +2.7 V, +5 V and ±5 V supplies
High speed and fast settling on 5 V
80 MHz, –3 dB bandwidth (G = +1)
30 V/µs slew rate
125 ns settling time to 0.1%
Low distortion
–62 dB @ 1 MHz, VO = 2 V p-p
–86 dB @ 100 kHz, VO = 4.6 V p-p
Rail-to-rail input and output
No phase reversal with input
0.5 V beyond supplies
Input CMVR extends beyond rails by 200 mV
Output swing to within 20 mV of either rail
Output current: 15 mA
High grade option
VOS (maximum) = 1.5 mV
