AD824 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD824
Manufacturer

ADI
ChipWorker Part#

CW205546070
RoHS

Lead free / RoHS Compliant
Description

Single Supply, Rail-to-Rail Low Power, FET-Input Op Amp
Documentation

Datasheet

AD824 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD824 Specifications

Attribute	Attribute Value

Part Number	AD824
Manufacturer	ADI
ChipWorker Part#	CW205546070
Documentation	Datasheet
Mounting Style	Surface Mount

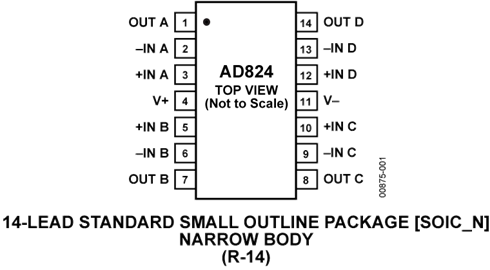

Case/Package	SOIC
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant

Product Description

GENERAL DESCRIPTION
The AD824 is a quad, FET input, single supply amplifier, featuring rail-to-rail outputs. The combination of FET inputs and rail-to-rail outputs makes the AD824 useful in a wide variety of
low voltage applications where low input current is a primary consideration.
The AD824 is guaranteed to operate from a 3 V single supply up to ±15 volt dual supplies.
FEATURES
Single Supply Operation: 3 V to 30 V
Very Low Input Bias Current: 2 pA
Wide Input Voltage Range
Rail-to-Rail Output Swing
Low Supply Current: 500 mA/Amp
Wide Bandwidth: 2 MHz
Slew Rate: 2 V/ms
No Phase Reversal
APPLICATIONS
Photo Diode Preamplifier
Battery Powered Instrumentation
Power Supply Control and Protection
Medical Instrumentation
Remote Sensors
Low Voltage Strain Gage Amplifiers
DAC Output Amplifier

expand all
