ADC0802LCN - TI

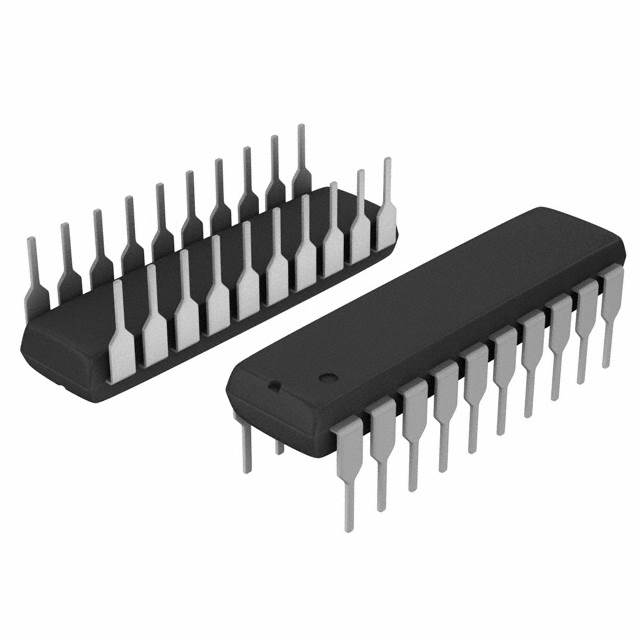

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADC0802LCN
Manufacturer

TI
ChipWorker Part#

CW106598485
Category

Analog to Digital, ADC IC
Package

DIP-20
Description

Analog to Digital Converter, 8Bit, 10KSPS, Single, 4.5V, 6.3V, DIP
Documentation

Datasheet

ADC0802LCN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADC0802LCN Specifications

Attribute	Attribute Value

Part Number	ADC0802LCN
Manufacturer	TI
ChipWorker Part#	CW106598485
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Supply Voltage (DC)	4.50V (min)
Supply Current	1.10 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	8 Bit
Power Dissipation	875 mW
Sample Rate	10 ksps
Power Consumption	5.50 mW
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Supply Voltage (Max)	6.3 V
Supply Voltage (Min)	4.5 V
Input Voltage	5 V
	expand all
Size-Length	26.42 mm
Size-Width	6.6 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

DESCRIPTION
The ADC0801, ADC0802, ADC0803, ADC0804 and ADC0805 are CMOS 8-bit successive approximation A/D converters that use a differential potentiometric ladder — similar to the 256R products. These converters are designed to allow operation with the NSC800 and INS8080A derivative control bus with TRI-STATE output latches directly driving the data bus. These A/Ds appear like memory locations or I/O ports to the microprocessor and no interfacing logic is needed.
FEATURES
• Compatible with 8080 µP derivatives – no interfacing logic needed – access time 135 ns
• Easy interface to all microprocessors, or operates “stand alone”
• Differential analog voltage inputs
• Logic inputs and outputs meet both MOS and TTL voltage level specifications
• Works with 2.5V (LM336) voltage reference
• On-chip clock generator
• 0V to 5V analog input voltage range with single 5V supply
• No zero adjust required
• 0.3" standard width 20-pin DIP package
• 20-pin molded chip carrier or small outline package
• Operates ratiometrically or with 5 VDC , 2.5 VDC, or analog span adjusted voltage reference
