ADC0844CCN - TI

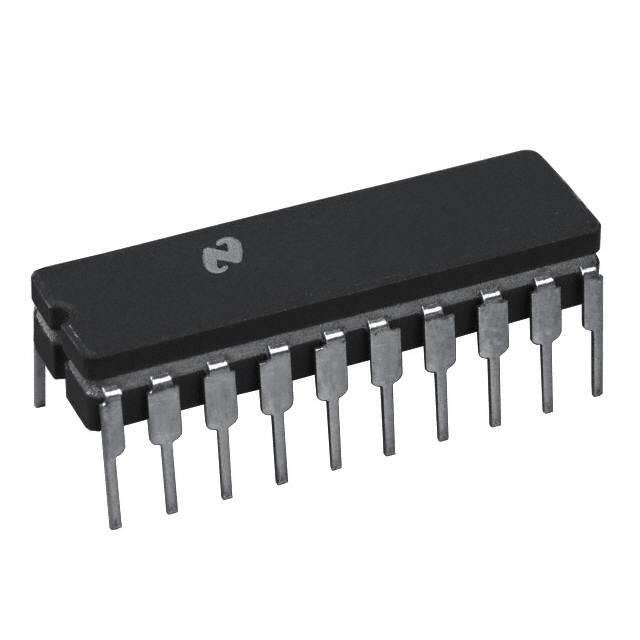

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADC0844CCN
Manufacturer

TI
ChipWorker Part#

CW79923996
Category

Analog to Digital, ADC IC
Package

DIP-20
Description

TEXAS INSTRUMENTS ADC0844CCN Analogue to Digital Converter, 8Bit, 25KSPS, Single, 4.5V, 6V, DIP
Documentation

Datasheet

ADC0844CCN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADC0844CCN Specifications

Attribute	Attribute Value

Part Number	ADC0844CCN
Manufacturer	TI
ChipWorker Part#	CW79923996
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Supply Voltage (DC)	4.50V (min)
Supply Current	1.00 mA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	875 mW
Sample Rate	25 ksps
Power Consumption	15 mW
Number of Inputs	4 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	4.5 V
Input Voltage	5 V
	expand all
Size-Length	26.42 mm
Size-Width	6.6 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The ADC0844CCN is a CMOS 8-bit successive approximation Analog-to-digital Converter (ADC) with versatile analog input multiplexers. The 4-channel multiplexers can be software configured for single-ended, differential or pseudo-differential modes of operation. The differential mode provides low frequency input common mode rejection and allows offsetting the analog range of the converter. In addition, the A/D reference can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution. The A/D is designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/D to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.
Easy interface to all microprocessors
No zero or full-scale adjust required
Internal clock
Green product and no Sb/Br
