ADC128S102EVM - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADC128S102EVM
Manufacturer

TI
ChipWorker Part#

CW5579824
Category

Microprocessor Development Kit
Description

12Bit 8Channel SAR Analog to Digital Converter Evaluation Module

ADC128S102EVM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADC128S102EVM Specifications

Attribute	Attribute Value

Part Number	ADC128S102EVM
Manufacturer	TI
ChipWorker Part#	CW5579824
Category	Microprocessor Development Kit
Number of Bits	12 Bit
Sample Rate	1 Msps
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

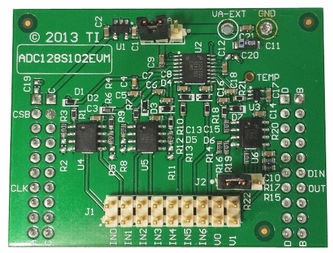

The*ADCS128S102EVM** is a demonstration kit for the **ADC128S102**, a 12-bit, 8-channel, 1MSPS, Serial Interface SAR analog-to-digital converter. The EVM allows users to evaluate the operation and performance of the ADC128S102 data converter. The user can source an analog input, and the user-friendly graphical user interface will display the equivalent output code. The board contains an external analog temperature sensor, LMT84, that allows users to quickly evaluate the ADC, and the GUI will display the temperature reading in code, voltage, or Celsius. The EVM features a small size layout that directly connects onto the MSP430F5529 LaunchPad board.
**Note:** The ADC128S102EVM can be used to evaluate the following devices: ADC088S022, ADC088S052, ADC088S102, ADC108S022, ADC108S052, ADC108S102, ADC128S022, ADC128S052
