ADE7757ARNZ - ADI

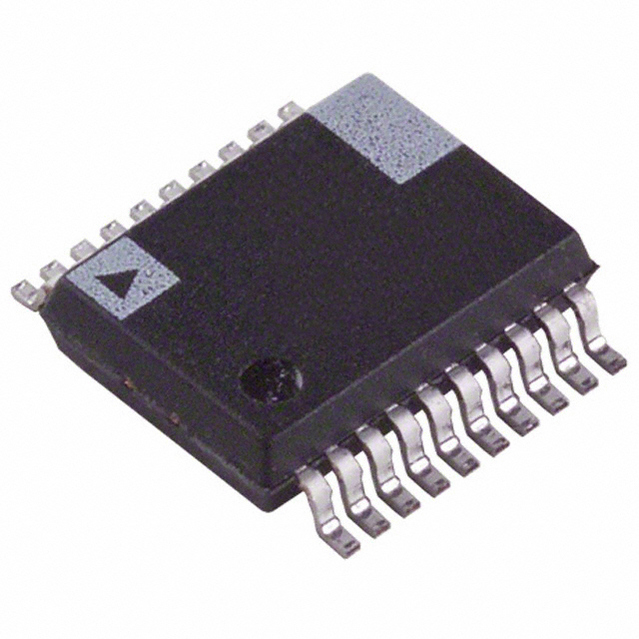

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADE7757ARNZ
Manufacturer

ADI
ChipWorker Part#

CW323630
Category

Specialty Application IC
Package

SOIC-16
Description

IC,Power Metering,CMOS,SOP,16Pin,PLASTIC
Documentation

Datasheet

ADE7757ARNZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADE7757ARNZ Specifications

Attribute	Attribute Value

Part Number	ADE7757ARNZ
Manufacturer	ADI
ChipWorker Part#	CW323630
Category	Specialty Application IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.00 V
Supply Current	5 mA
Number of Positions	16 Position
Power Consumption	20 mW
Input Impedance	320 kΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Don"t forget to implement this ADE7757ARNZ data conversion tool from Analog Devices so your computer can recognize your input signals. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging.
