ADG901BRMZ ,Logic Controller, Logic IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

211 points

Part No

ADG901BRMZ
Manufacturer

ADI
ChipWorker Part#

CW194087
Category

Logic Controller, Logic IC
Package

MSOP-8
Description

RF Switch SPST 0MHz to 2.5GHz 31dB 8Pin MSOP
Documentation

Datasheet
Ships from

Moscow
Наличие

131156 pcs In Stock
Estimated Price

$ 1.16

Buy ADG901BRMZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADG901BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADG901BRMZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADG901BRMZ
Manufacturer	ADI
ChipWorker Part#	CW194087
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	2500 MHz
Supply Voltage (DC)	1.65V (min)
Number of Outputs	1 Output
Supply Current	100 nA
Number of Positions	8 Position
Number of Bits	3 Bit
Power Dissipation	2.50 µW
Bandwidth	4.50 GHz
Test Frequency	1 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 2.75V
Supply Voltage (Max)	2.75 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Size-Thickness	850 µm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

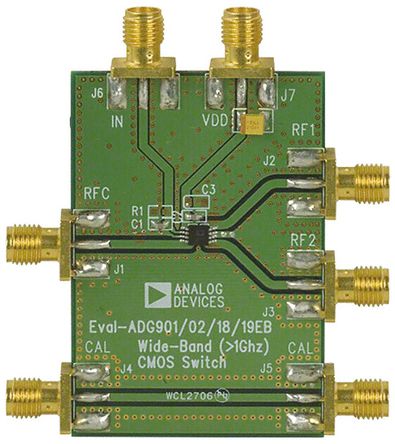

Product Details
The ADG901/ADG902 are wideband switches that use a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG901 is an absorptive (matched) switch with 50 Ω terminated shunt legs, while the ADG902 is a reflective switch. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless applications and general-purpose high frequency switching.
**Product Highlights**
1. −40 dB Off Isolation at 1 GHz
2. 0.8 dB Insertion Loss at 1 GHz
3. Tiny 8-Lead MSOP/LFCSP Packages
**Applications**
Wireless communications
General purpose RF switching
Dual-band applications
High speed filter selection
Digital transceiver front-end switch
IF switching
Tuner modules
Antenna diversity switching list
### Features and Benefits
Wideband switch: −3 dB at 4.5 GHz
Absorptive switch
High off isolation: 40 dB at 1 GHz
Low insertion loss: 0.8 dB at 1 GHz
Single 1.65 V to 2.75 V power supply
CMOS/LVTTL control logic

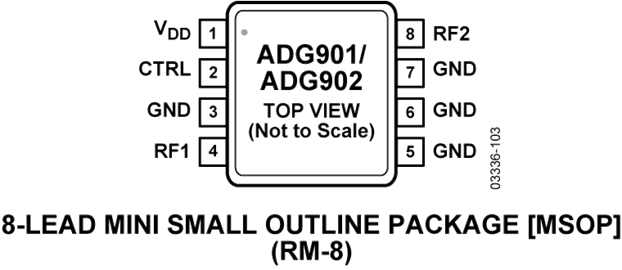

8-lead MSOP and tiny 3 mm × 3 mm LFCSP packages
Low power consumption (<1 μA)
**ADG901-EP supports defense and aerospace applications (AQEC standard)**
Download ADG901-EP data sheet (pdf)
Military temperature range: −55°C to +125°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Enhanced product change notification
Qualification data available on request
V62/16613 DSCC Drawing Number
