ADV7280KCPZ-M ,Interface IC, Interface Controller - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

134 points

Part No

ADV7280KCPZ-M
Manufacturer

ADI
ChipWorker Part#

CW2004444
Category

Interface IC, Interface Controller
Package

LFCSP-32
Description

Video Decoder 1ADC 10Bit Automotive 32Pin LFCSP EP Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

52377 pcs In Stock
Estimated Price

$ 1.22

Buy ADV7280KCPZ-M

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADV7280KCPZ-M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADV7280KCPZ-M Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADV7280KCPZ-M
Manufacturer	ADI
ChipWorker Part#	CW2004444
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Power Dissipation	1 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Power Dissipation (Max)	1 mW
	expand all
Size-Length	5.1 mm
Size-Width	5.1 mm
Size-Height	0.75 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Product Details

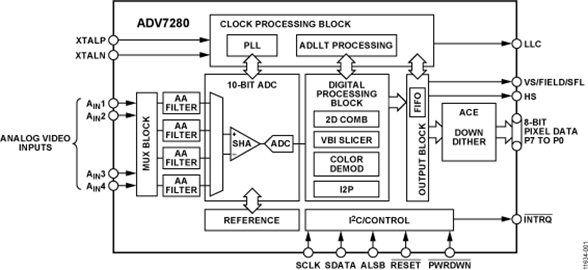

The ADV7280/ADV7280-M are versatile one-chip, multiformat video decoders. The ADV7280/ADV7280-M automatically detect standard analog baseband video signals compatible with worldwide NTSC, PAL, and SECAM standards in the form of composite, S-Video, and component video.
The ADV7280 converts the analog video signals into a 4:2:2 component video data stream that is compatible with the 8-bit ITU-R BT.656 interface standard. The ADV7280-M converts the analog video signals into a mobile industry processor interface (MIPI®) CSI-2 (8-bit YUV) output video stream.
The analog video inputs of the ADV7280/ADV7280-M accept single-ended signals. The ADV7280 provides four analog inputs; the ADV7280-M provides eight analog inputs. The ADV7280 and ADV7280-M support I2P conversion.
The ADV7280/ADV7280-M are programmed via a 2-wire, serial bidirectional port (I2C compatible) and are fabricated in a 1.8 V CMOS process. The LFCSP package option makes these decoders ideal for space-constrained portable applications.
**Applications**
Smartphone/multimedia handsets
Automotive infotainment
DVRs for video security
Media players
### Features and Benefits
Worldwide NTSC/PAL/SECAM color demodulation support
One 10-bit analog-to-digital converter (ADC), 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
Analog video input channels with on-chip antialiasing filter
ADV7280: up to 4 input channels
ADV7280-M: up to 8 input channels
Video input support for CVBS (composite), Y/C (S-Video), and YPrPb (component)
NTSC/PAL/SECAM autodetection
Up to 1.47 V common-mode input range solution
Excellent common-mode noise rejection capabilities
5-line adaptive 2D comb filter and CTI/DNR video enhancement
Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management provide mini-time base correction (TBC) functionality
See data sheet for additional features
