AGQ20024 - Panasonic

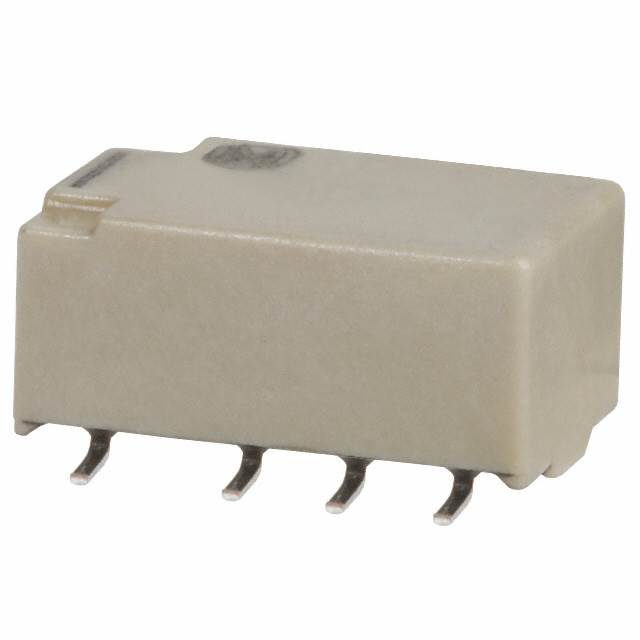

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AGQ20024
Manufacturer

Panasonic
ChipWorker Part#

CW8510129
Category

Industrial Relay
Package

DIP
Description

Signal Relay 24VDC 2A DPDT( (10.6mm 7.2mm 5.2mm)) THT
Documentation

Datasheet

AGQ20024 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AGQ20024 Specifications

Attribute	Attribute Value

Part Number	AGQ20024
Manufacturer	Panasonic
ChipWorker Part#	CW8510129
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Current Rating	1 A
Power Rating	30 W
Contacts Type	DPDT
Contact Current Rating	2 A
Coil Voltage	24 VDC
Coil Current	9.6 mA
Coil Resistance	2.504 kΩ
Carry Current	1.00 A
Current Rating (Max)	2 A
Coil Voltage (DC)	24 V
Coil Power	230 mW
Input Power (Max)	30W, 37.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
	expand all
Size-Length	10.6 mm
Size-Width	7.2 mm
Size-Height	5.2 mm
Contact Material	Silver Palladium
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536490050
ECCN Code	EAR99

Product Description

1 A Rated Current, 110 VDC, 125 VAC Voltage Rating, Flat Polarized Relay
* Compact flat body saves space
* Outstanding surge resistance
* The use of twin crossbar contacts ensures high contact reliability
* Increased packaging density
* Nominal operating power 140 mW
* Outstanding vibration and shock resistance
2 Form C contact. AgPd + Au Clad (stationary), AgPd (movable) contact material.
