AGQ200S1H ,Industrial Relay - Panasonic

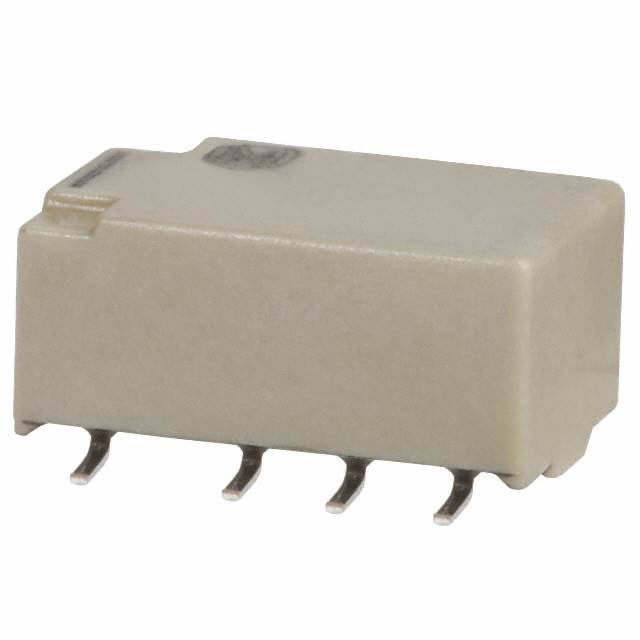

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
84 points
-
Part NoAGQ200S1H
-
ManufacturerPanasonic
-
ChipWorker Part#CW21553162
-
CategoryIndustrial Relay
-
DescriptionSignal Relay 1.5VDC 2A DPDT (10.6mm 7.2mm 5.4mm) SMD
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие1 pcs In Stock
-
Estimated Price$ 4.79
Payment Methods and Delivery
{{ estimate }}
Buy AGQ200S1H
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
AGQ200S1H Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
AGQ200S1H Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | AGQ200S1H | |
| Manufacturer | Panasonic | |
| ChipWorker Part# | CW21553162 | |
| Category | Industrial Relay | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Contacts Type | DPDT | |
| Power Consumption | 140 mW | |
| Contact Current Rating | 1.00 A | |
| Coil Voltage | 1.5 VDC | |
| Coil Current | 93.8 mA | |
| Coil Resistance | 16 Ω | |
| Current Rating (Max) | 2 A | |
| Coil Voltage (DC) | 1.5 V | |
| Input Power (Max) | 30W, 37.5VA | |
| Switching Current (Max) | 2 A | |
| Operating Temperature (Max) | 85 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| expand all | ||
| Size-Length | 10.6 mm | |
| Size-Width | 5.4 mm | |
| Size-Height | 5.4 mm | |
| Contact Material | Silver Palladium | |
| Operating Temperature | -40℃ ~ 85℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tube | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| HTS Code | 8536490050 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- FEATURES
- 1\. High capacity: 2 A
- 2\. Compact flat body saves space With a small footprint of 10.6 mm (L) × 7.2 mm (W) .417 inch (L) × .283 inch (W) for space savings, it also has a very short height of 5.2 mm .205 inch. (Standard PC board type.)
- 3\. High sensitivity single side stable type (Nominal operating power: 100mW) is available
- 4\. Outstanding surge resistance.
- Surge breakdown voltage between
- contacts and coil: 2,500 V 2×10 µs (Telcordia) Surge breakdown voltage between
- open contacts: 1,500 V 10×160 µs (FCC part 68)
- 5\. The use of twin crossbar contacts ensures high contact reliability. AgPd contact is used because of its good sulfide resistance. Adopting low gas molding material. Coil assembly molding technology which avoids generating volatile gas from coil.
- 6\. Increased packaging density Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted close-together are minimized. This all means a packaging density higher than ever before.
- 7\. Nominal operating power: 140 mW
- 8\. Outstanding vibration and shock resistance.
- Functional shock resistance: 750 m/s2
- Destructive shock resistance: 1,000 m/s2
- Functional vibration resistance: 10 to 55 Hz (at double amplitude of 3.3 mm .130 inch)
- Destructive vibration resistance: 10 to 55 Hz (at double amplitude of 5 mm .197 inch)
- 9\. Sealed construction allows automatic washing.
- TYPICAL APPLICATIONS
- 1\. Telephone switchboard
- 2\. Telecommunications equipment
- 3\. Security
- 4\. Measurement equipment
- 5\. Consumer electronic and audio visual equipment
