TMS320F28335PGFA ,Microcontroller, MCU IC - TI

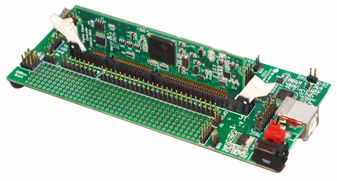

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

230 points

Part No

TMS320F28335PGFA
Manufacturer

TI
ChipWorker Part#

CW37858
Category

Microcontroller, MCU IC
Package

LQFP-176
Description

MCU 32Bit C28x RISC 512KB Flash 1.9V/3.3V 176Pin LQFP Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

970 pcs In Stock
Estimated Price

$ 7.95

Buy TMS320F28335PGFA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TMS320F28335PGFA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TMS320F28335PGFA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TMS320F28335PGFA
Manufacturer	TI
ChipWorker Part#	CW37858
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	176 Pin
Case/Package	LQFP-176
Frequency	150 MHz
Supply Voltage (DC)	1.80V (min)
Operating Voltage	1.805V ~ 1.995V
Number of Positions	176 Position
Clock Speed	150 MHz
RAM Memory Size	68 KB
Number of Bits	32 Bit
FLASH Memory Size	512 KB
Number of UARTs	3 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	88 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.135V ~ 3.465V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	expand all
Size-Length	24.2 mm
Size-Width	24.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A991.a.2
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The TMS320F28335PGFA is a Delfino Microcontroller for demanding control applications. The GPIO function is the default at reset. The peripheral signals that are listed under them are alternate functions. Some peripheral functions may not be available in all devices. The F28335 device contains 256K x 16 of embedded flash memory, segregated into eight 32K x 16 sectors. It also contains a single 1K x 16 of OTP memory at address range 0x380400-0x3807FF. The user can individually erase, program and validate a flash sector while leaving other sectors untouched. However, it is not possible to use one sector of the flash or the OTP to execute flash algorithms that erase/program other sectors. Special memory pipelining is provided to enable the flash module to achieve higher performance. The flash/OTP is mapped to both program and data space, therefore, it can be used to execute code or store data information.
High-performance static CMOS technology
Six-channel DMA controller (for ADC, McBSP, ePWM, XINTF and SARAM)
Clock and system control
On-chip oscillator
Watchdog timer module
GPIO0 to GPIO63 pins can be connected to one of the eight external core interrupts
Peripheral Interrupt Expansion (PIE) block that supports all 58 peripheral interrupts
128-bit Security key/lock
Up to 6 HRPWM outputs with 150ps MEP resolution
Up to 6 event capture inputs
Up to 2 quadrature encoder interfaces
Three 32-bit CPU timers
Serial port peripherals
Up to 88 individually programmable, multiplexed GPIO pins with input filtering
Low-power modes and power savings
Green product and no Sb/Br
