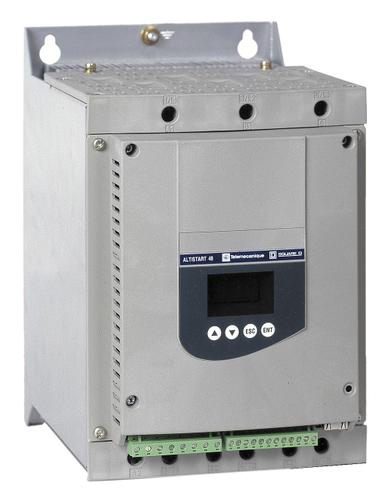

ATS48C25Y - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ATS48C25Y
Manufacturer

Schneider Electric
ChipWorker Part#

CW262794764
Description

Electric 250A Soft Start ATS48 Series, IP00, IP20, 250kW, 208 to 690V ac
Documentation

Datasheet

ATS48C25Y Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ATS48C25Y Specifications

Attribute	Attribute Value

Part Number	ATS48C25Y
Manufacturer	Schneider Electric
ChipWorker Part#	CW262794764
Documentation	Datasheet
Mounting Style	Panel
Current Rating	250 A
Power Rating	250 kW
Operating Temperature (Max)	40 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage	208V ~ 690V
	expand all
Size-Width	320 mm
Operating Temperature	-10℃ ~ 40℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* Designed for 3-phase AC motors and harsh applications (starting time >30s)
* Patented torque control system (TCS) to manage soft start and dynamic breaking
* Motor thermal protection and motor preheating function
* Machine under- and overload protection
* Cascaded starting and deceleration of a number of motors
* Integrated modbus communication and other gateway solutions
* Large number of configurable I/O
* Automatic restart
* Plug-and-play factory setting
