AO6403 ,MOSFET, MOSFET Transistor - Alpha & Omega Semiconductor

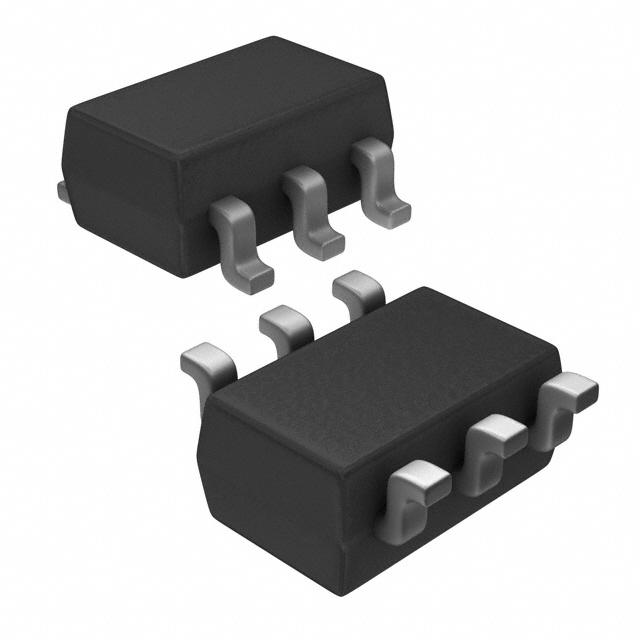

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

106 points

Part No

AO6403
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW24262235
Category

MOSFET, MOSFET Transistor
Package

TSOP-6
Description

TSOP P-CH 30V 6A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.2

Buy AO6403

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AO6403 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AO6403 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AO6403
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW24262235
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-6
Power Rating	1.3 W
Polarity	P-CH
Power Dissipation	2 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	6A
Rise Time	6 ns
Input Capacitance (Ciss)	920pF @15V(Vds)
Input Power (Max)	2 W
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2W (Ta)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

General Description
The AO6403 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. It may be used in common-drain configuration to form a bidirectional blocking switch. AO6403 is Pb-free (meets ROHS & Sony 259 specifications). AO6403L is a Green Product ordering option. AO6403 and AO6403L are
electrically identical.
Features
VDS(V) = -30V
ID= -6 A (VGS= -10V)
RDS(ON) < 35mΩ(VGS= -10V)
RDS(ON)< 58mΩ(VGS= -4.5V)

expand all
