AOD4N60 - Alpha & Omega Semiconductor

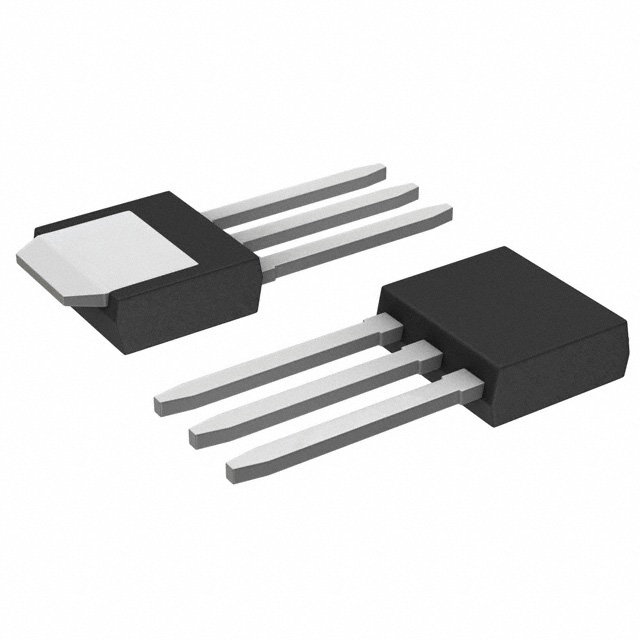

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AOD4N60
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW12677133
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 600V 4A
Documentation

Datasheet

AOD4N60 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AOD4N60 Specifications

Attribute	Attribute Value

Part Number	AOD4N60
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW12677133
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	104 W
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	4A
Rise Time	26 ns
Input Capacitance (Ciss)	640pF @25V(Vds)
Input Power (Max)	104 W
Fall Time	21 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
Power Dissipation (Max)	104W (Tc)
	expand all
Operating Temperature	-50℃ ~ 150℃ (TJ)
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

This AOD4N60 power MOSFET from Alpha & Omega Semiconductor can be used for amplification in your circuit. Its maximum power dissipation is 104000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This MOSFET transistor has an operating temperature range of -50 °C to 150 °C. This N channel MOSFET transistor operates in enhancement mode.
